Home > Products > Briquette Charcoal Machine > Wood Briquette Charcoal Machine
Wood Briquette Charcoal Machine
US$ 1,000 - 100,000
/ Set
1 Set(Min. Order)
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | GEMCO/AGICO | Model Number | GC-140 | |
| Voltage | 380V, 50HZ, 3PHASE | Power(W) | 7.5kw | |
| Weight | 1200KG | Dimension(L*W*H) | 1860*800*1360mm | |
| Certification | BV ISO | Warranty | 1-3year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications

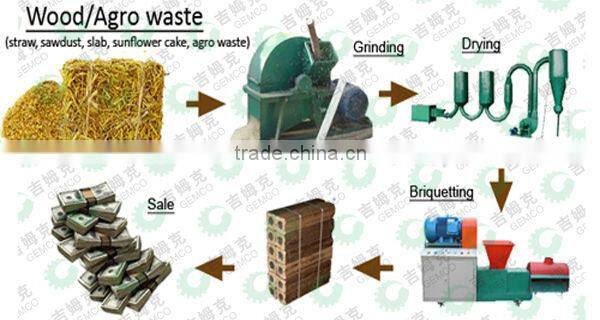

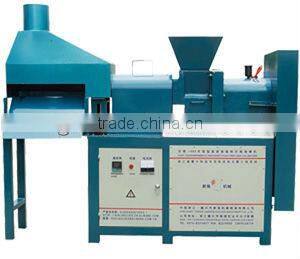

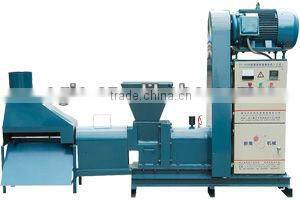

wood briquette charcoal machine is used to make biomass material into briquettes,then carbonized to release more heat in burningGCBC Series Wood Briquette Charcoal Machine is a kind of high-end briquetting equipment. It is improved in both appearance design and structure design based on 6 years of research and manufacturing experience. Do not need to change Inner Former until input capacity exceed 1000 tons.
| Model | GCBC- I |  |
| Output capacity kg/h | 180-210 | |
| Motor Power (kw) | 15 | |
| Electric heater (kw) | 2.2kw*2 | |
| Life of the inner former | 1-2years | |
| Size of briquettes | Dia.50mm*L.480mm | |
| Size of inside hole | Dia.16mm | |
| Density of briquettes | 1.3 g/cm3 | |
| Weight(kg) | 700kg | |
| Overall dimension(mm) | 2700*600*1600 mm |
| Model | GCBC-II | |
| Output capacity kg/h | 300-350 | |
| Motor Power (kw) | 18.5kw | |
| Electric heater (kw) | 2.2kw×2 | |
| Life of the inner former | 1-2years | |
| Size of briquettes | Dia.60mm*L.500mm | |
| Size of inside hole | Dia.16mm | |
| Density of briquettes | 1.3 g/cm3 | |
| Weight(kg) | 1000kg | |
| Overall dimension(mm) | 2000*600*1700 mm |

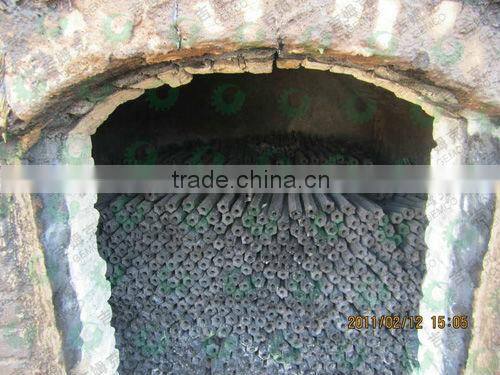

After the briquettes are made out, they should be carbonized by great heat.

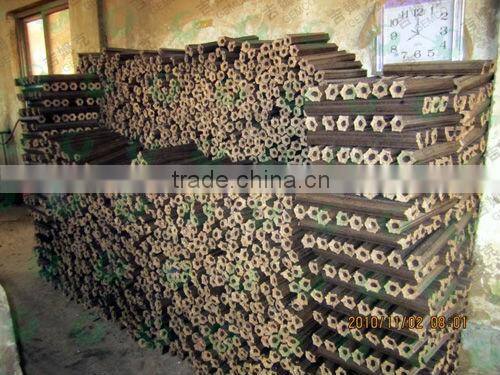

Before:
After:
Waiting for your contact!
