Roller Press Coal Briquette Machine

Coal Briquette Machine

With a coal powder or charcoal powder briquette machine, fines can be turned into lumps of charcoal. Feel free to send us an email if you are interested in our briquette maker or simply want to know more about making charcoal/coal briquettes!

Minimum Charcoal Machine

Model GCXM-1
Power 5.5kw
Capacity 1-2TPH
Diameter of Roller 290mm
Form of Structure 200mm
Overall Size Two rollers single press
Weight 560kg

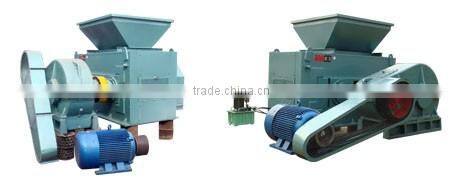

Mechanical Charcoal Machine

GCXM-4 4TPH 7.5-15 18r/min Mechanical 65Mn Four roller double press

GCXM-6 6TPH 11-18.5 15r/min Mechanical 65Mn Four roller double press

GCXM-8 8TPH 15-22 15r/min Mechanical 65Mn 9cr2Mn Four roller double press

Hydraulic Charcoal Machine

GCXM-10 10TPH 18.5-30 13r/min Mechanical & Hydraulic 65Mn/9cr2Mn Four roller double press

GCXM-15 15TPH 30-45 13r/min Mechanical & Hydraulic 65Mn/9cr2Mn Four roller double press

GCXM-20 20TPH 55-75 13r/min Mechanical & Hydraulic 65Mn/9cr2Mn Four roller double press

GCXM-30 30TPH 75-90 10r/min Mechanical & Hydraulic 65Mn/9cr2Mn Four roller double press

Main Features

1. Charcoal machine is designed for briquetting of desulfurization gypsum powder, charcoal, coking coal, coal mud, coal ash, etc. Coal / coconut charcoal briquettes are easy to store and transport. They have advantages of energy saving, high efficiency and environmental protection.

2. GEMCO Roller Press Charcoal Briquette Machine has two types. One is "two rollers single press type" and the other is "four-roller double-pressing type". Among the Four-roller Double-pressing Type, you also have two options: Mechanical Charcoal Machine and Hydraulic Charcoal Machine.

3. Double-pressing Charcoal Briquette Machinery can supply higher pressure than commone ones and the density of final briquettes can be much higher. GEMCO Machines perform well at reducing bug dust, controlling volume and recycling.

Roller Parts

Final Briquettes:
Shape: Can be round, pillow, oval.
Size: Changeable size 18mm-80mm, made according to clients requests

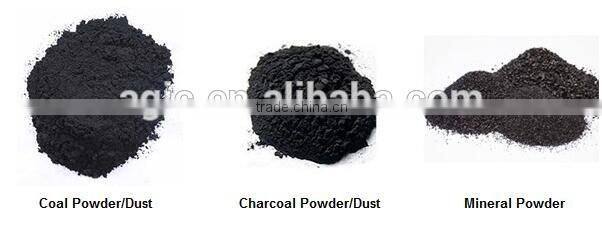

Raw material can be processed:

Coal dust like brown coal, lignite coal, lean coal, anthracite, peat, and the old brown coal, charcoal fines, coke dust/fines, peacoke, carbon black, carbon dust, clay, activated carbon, etc.
