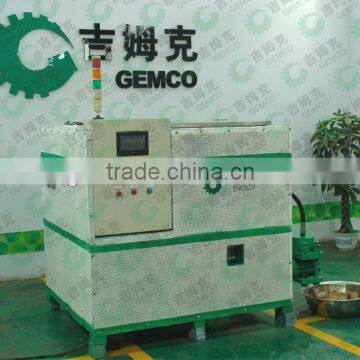

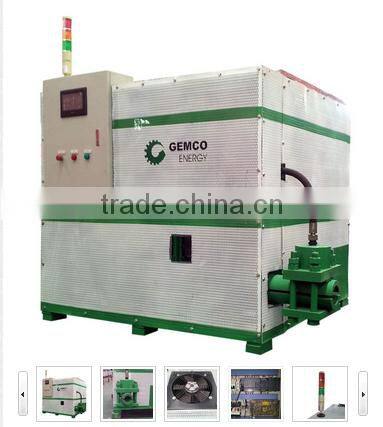

120 kg per Hour Wood Chip Block Making Machine

As a dedicated model of hydraulic briquette press family to produce sawdust briquette, the GMC-YKY012 specializes in processing fined materials from tree branches, twigs, waste wood blocks, rice husk, straw, paperboard and other wood substances and so on. After the work of pulverizer, feedstock will be further manufactured into dried biomass briquette with higher density so that simple storage and convenient transportation can be realized favorably on the one hand, and the product can on the other hand be employed as forage or fuel. In particular, briquette as fuel boasts energy-saving performance and less carbon emissions, also taken as a clean renewable energy of efficiency.

Working principles:

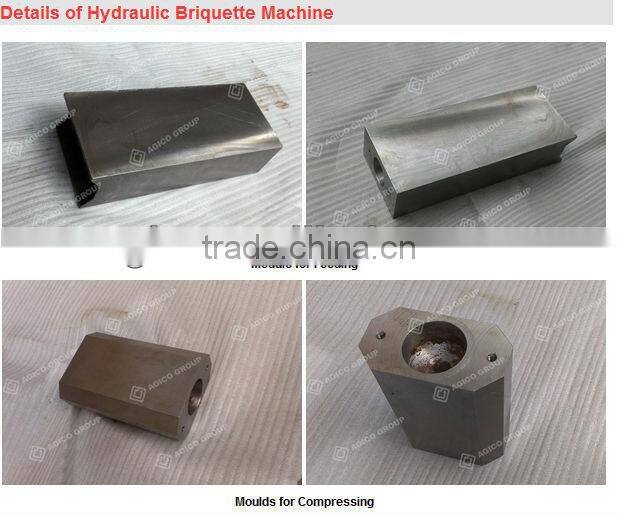

After being pulverized, tree branches, twigs and waste wood blocks will via the machine be extruded into briquette, with the moisture content of roughly 12%. Specifically, feedstock is loaded into a material bin, conveyed through a screw conveyor to the briquetting cavity, and pressed into blocks in sequence after the work of hydraulic cylinders and the mould. The product, with the forming density of 0.7-1kg/dm³, will be pushed out along with the slideway.
