Home > Products > Biomass Energy Machine > CE/SGS/ISO used wood pellets machine price
CE/SGS/ISO used wood pellets machine price
- CMP
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | GEMCO | Model Number | PM35,420,508 | |
| Voltage | 380V, 50HZ, 3PHASE | Power(W) | 60KW, 90KW,110KW | |
| Dimension(L*W*H) | 2600*1300*2300mm | Weight | 4.5T | |
| Certification | CE&ISO | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

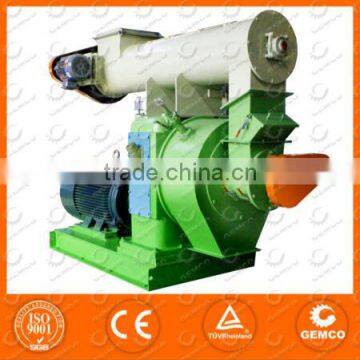

Wood Pellets Machine Price
wood pellets machine is also known as wood pellet plant or pellet plant which serves for making the agro-forestry wastes into solid fuel or wood pellets. It includes crushing, drying, pelletizing, cooling, and packaging machinery
let Production Plant ?

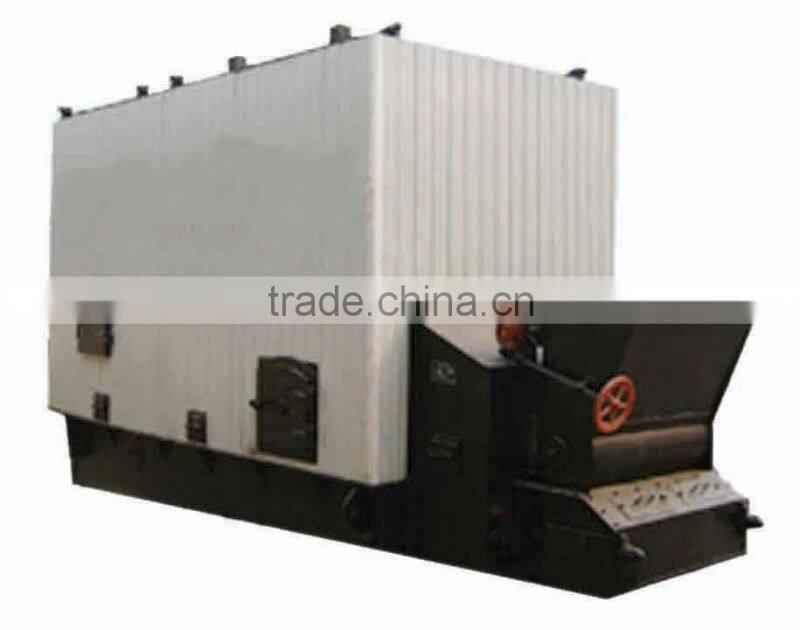

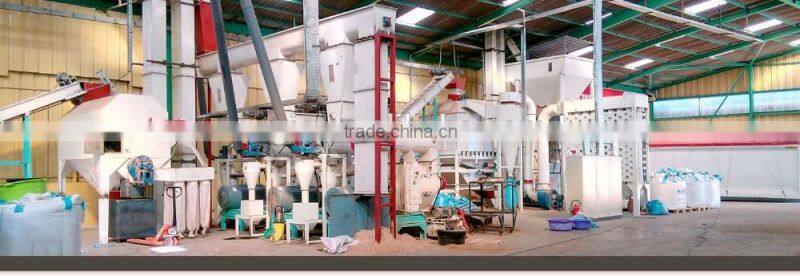

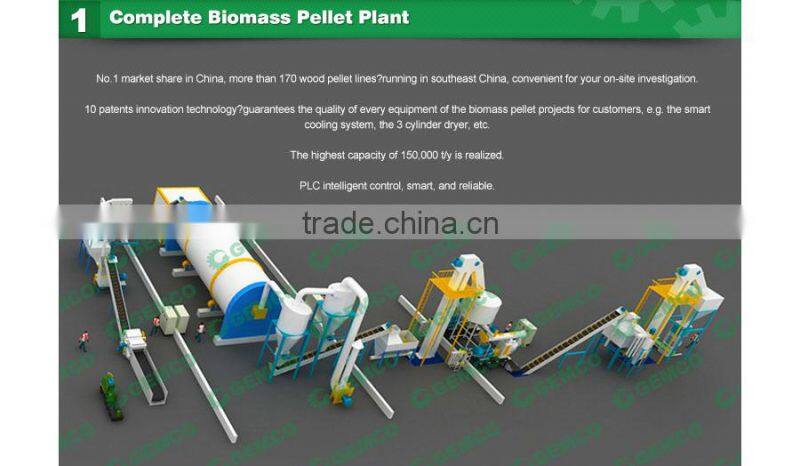

The wood pellet production plant is also known as wood pellet line or pellet plant which refers to a set of complete wood pellet mills is used to produce biomass wood pellets on a large scale. Besides the wood pellet making machine, some other auxiliary equipment are also is used in the pelleting process, such as a hammer mill, crusher, hot stove, rotary dryer, cooler, separator, packing machine etc.
Depending on its material composition, the pellets can be used as animal feed or as fuel pellets for use in a pellet stove or boiler.
4. What are the pellets made from?
Pellets can be made from wood,sawdust,plastic,foam,wheat,barley,cotton and fibrous waste with proper material moisture of 10%-15%. Steam or a binder such as molasses may also be added into the mix.
Services
- Raw Material Crusher Equipments
- Drum Dryer Equipments
- Pellet Press Processing Equipments
- Pellets Cooler Equipments
- Pellets Packager Equipments

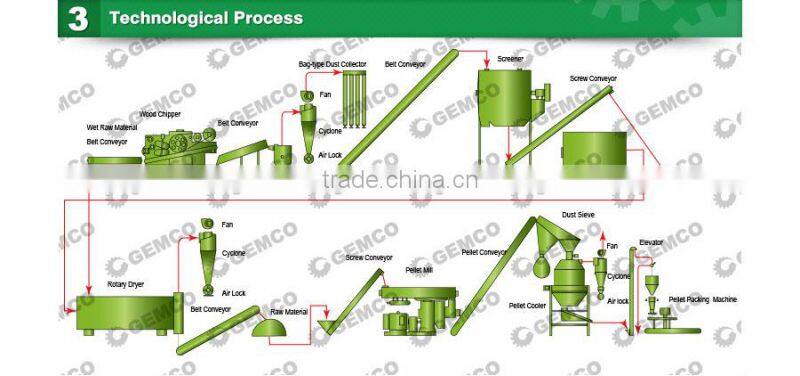

Pelletizing Process of the Wood Pellet Plant:
2. Drying:
After raw materials are crushed a dryer is needed since most raw wood materials have a moisture content of about 50%. However, the optimal moisture content for pelletiztion is 13%-15%. Therefore a rotary dryer is included in the wood pellet plant to reduce the moisture content. After crushing and drying you can begin making wood pellets.

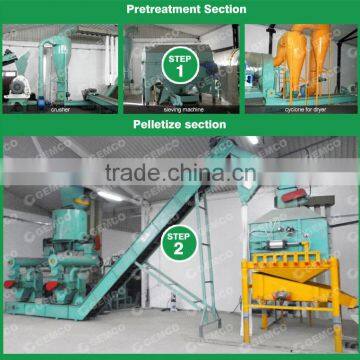

3. Pelletizing:

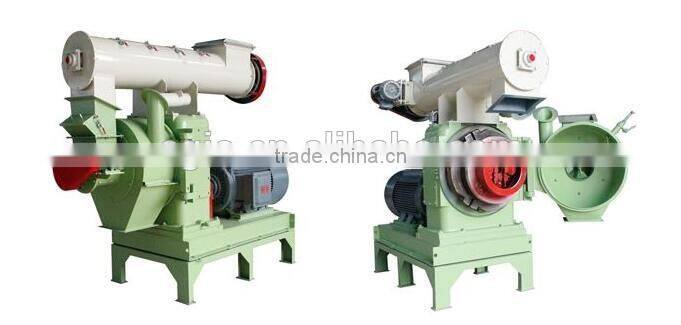

After crushing and drying the raw material properly it is then ready for the pellet mill. The pelletizing machine or press is the key piece of machinery in the wood pellet plant. It should be mentioned that impurities in the raw materials like metal or stone,may damage the die and rollers of wood pellet making machine.

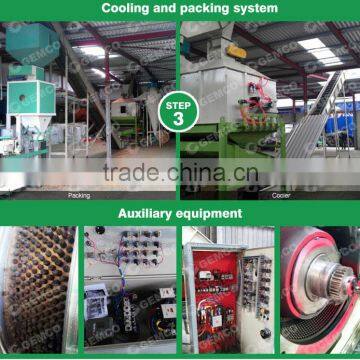

4.Cooling:
Usually after pelletizing, the temperature of wood pellets is between 60-80 degrees and the moisture content is close to 15%. For storage purposes, a cooler must be used to reduce their surface temperature and moisture content.
5. Packing:
Finally is the packing process. In order to protect the wood pellets becoming getting damp and to increase storability, proper packing is necessary. Here we provide you with the best domestic Semi-Auto Packing Machine.
Equipment List
| No. | Name | Model | Quantity | Power |
| 1. | Hammer mill | 500-40 | 1 | 22kw |
| 2. | Cyclone | 63 | 2 | |
| 3. | Roller Dryer | HQ-1000/10000 | 1 | 9kw |
| 4. | Pellet Mill | KM-55 | 1 | 55kw |
| 5. | Elevator | TSJ-500 | 2 | 1.5-4kw |
| 6. | Coolant separator | LQ-1 | 1 | 9kw |
| 7. | Pulse dust collector | MC-1 | 1 | 1kw |
| 8. | Quota packing scale | TSKC | 1 | 4.5kw |
| 9. | Electrical Cabinet | 1 |
