Home > Products > SUK series terminal blocks > Phoenix Type 2 Level SUK-4 Din Rail Terminal Block
Phoenix Type 2 Level SUK-4 Din Rail Terminal Block
- Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | sipun | |
| Model Number | SUK-4/2-2 | Type | Screw Terminal |
Product Description
phoenix type 2 level SUK-4 din rail terminal block
Descruotion:
1.General specifications SUK-4 terminal blocks Compliance with international standards : IEC60947-7-1
2.Wire range : rigidity wire : 0.2-4mm, flexibility wire : 0.2-4mm.
3.Terminal can used in TH35 and G32 rail.
4.Insulation material is PA66, Antiflaming and anticorrosion.
5.Small volume, complete range of articles.
6.self locking function, crimping fastness.
Specifications:
| Model Number | SUK-4/2-2 |

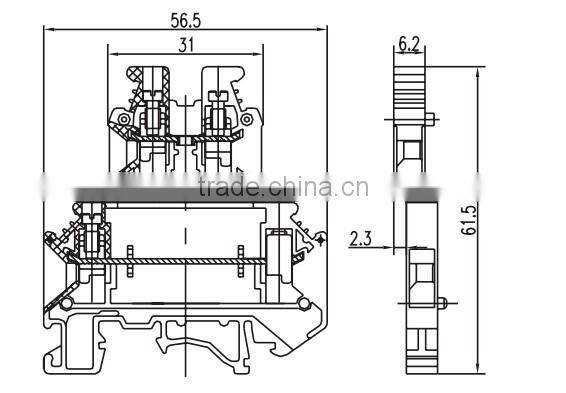

| T/W/H(mm) | 6.2*56.5*61.5 |
| Clamping screw | M3 |
| Torque | 0.6-0.8NM |
| Stripping Length | 8mm |
| Rated Voltage | 500V |
| Reted Current | 32A |
| Cross Section | 4mm2 |
| Wire cross section, solid core | 0.2-4mm2 |
| Wire cross section, stranded | 0.2-4mm2 |
| Packaging Detail | 100pcs/box;2500pcs per carton |
| Certification | CE/RoHS/EX |

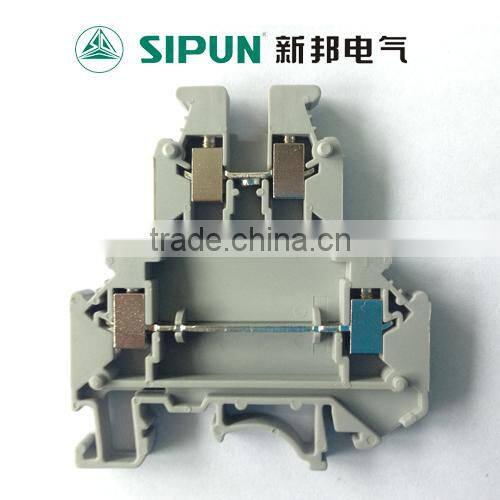

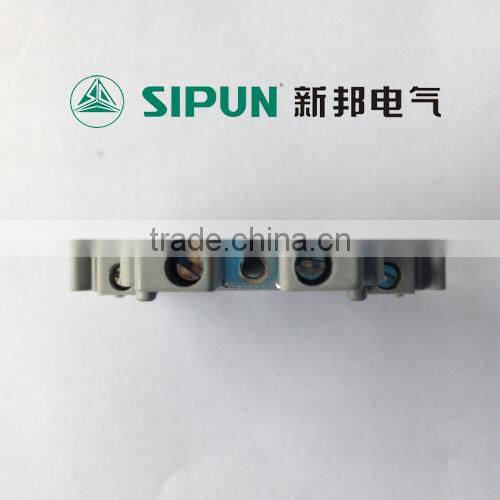

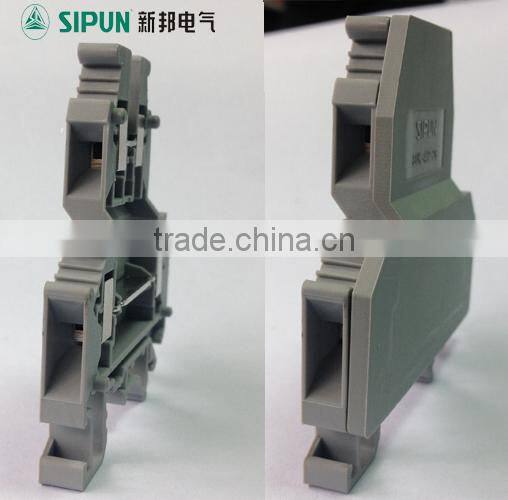

Product shows:
we can customize your color:
Parts:
Compare with others:
Wiring diagram:
Installation:

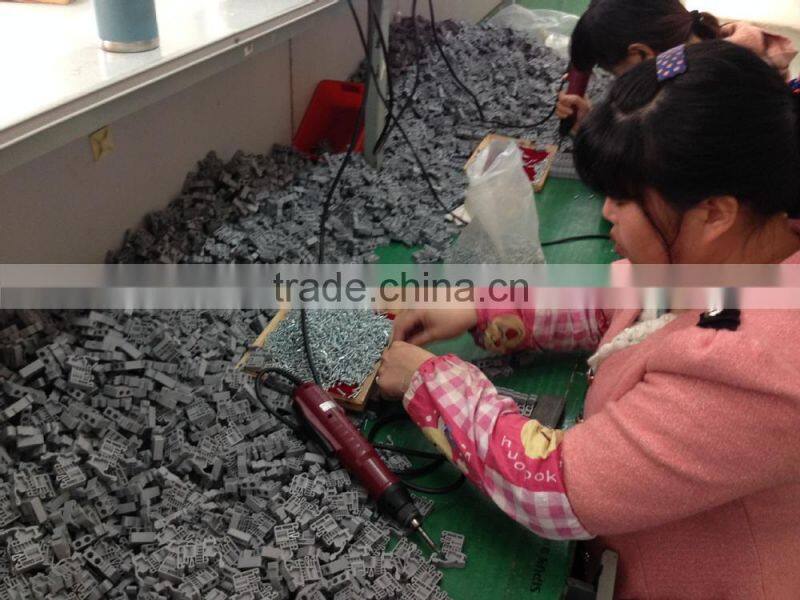

Our workshop:
Pacagking:
Certificate:
We are professional terminal blocks manufacturer,and we have competitive price,OEM is ok,choose us,you won' t regret it.SEND ME A INQUIRY NOW! I WILL GIVE YOU A BEST OFFER!
