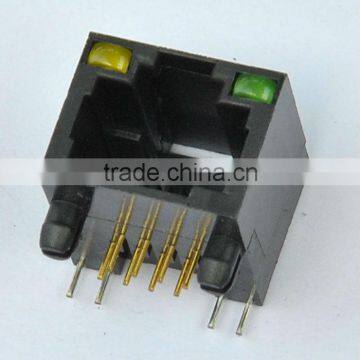

1*1 port RJ45 Modular Jack with LED
- Shanghai or Ningbo
You May Like
Product Details
| Brand Name | CSCE | Model Number | SC601-56-LED 1X1 | |
| Type | RJ45 |
Product Description
Specifications
1.RJ45 Modular Jack with LED2.UL,RoHS,ISO9001-2000
Description:
RJ45 connector with 0.46mm round pin
Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Insertion force: 2.2kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum
Materials:
Housing: PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.46mm phosphor bronze gold plating over Nickel
3.Gold Plating: Fu inch, 3u inch, 6u inch, 15u inch, 30u inch, 50u inch
