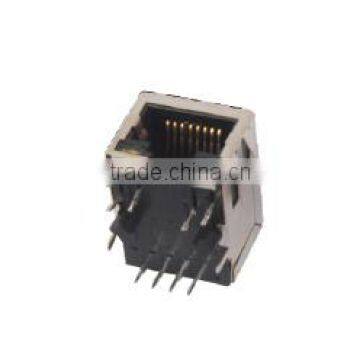

Shielded Side Entry RJ45 PCB JACK /Socket/Connector with LED
- Shanghai/Ningbo
- Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CSCE | |
| Model Number | SC1001-003NL | Type | RJ45 | |
| Application | PCB | Gender | Female |
Product Description
Specifications
1.RJ45 Network Modular PCB Jack/socket/connector with 0.45mm phosphor bronze contact wire2.UL,RoHS,ISO
Description:
RJ45 Lan modular PCB jack
With shielding, round pin
Number of ports: 1*1
Number of position: 8
Number of contacts: 2,4,6 or 8
Electrical:
Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Insertion force: 2.2kgf max
Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum
Materials:
1. Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu",+3u",6u",15u",30u",50u"
