Home > Products > Tablet Press > Zp-23,33,35,37 Series Rotary Tablet Press Machine

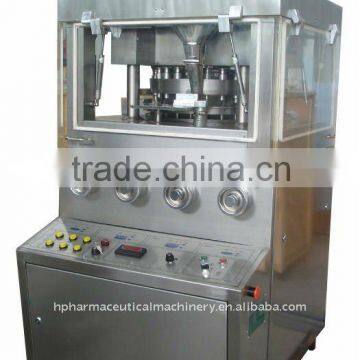

Zp-23,33,35,37 Series Rotary Tablet Press Machine
- Shanghai China
- Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Minhua | |
| Model Number | Zp-23,33,35,37 Series | Type | Other, Rotary Tablet Press, Tablet Pressing Machine | |
| Production Capacity | 85000-160000pcs/hour |
Product Description
Specifications
1.It have 23,33,35,37sets dies.2.Can contorl the press speed and filling depth and thickness.
3.85000/140000/150000/160000p/h
Description and feature:
This machine is a double-press type. Continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries.
Characteristics:
1. The outside part of the machine is fully-enclosed, The material of the cover and the inside table face is stainless steel. The turret face is specially disposed keeping the luster of the face and prevent the cross pollution, meeting the G.M.P requirement.
2. It has transparent windows so that press condition can be observed clearly and the window can be opened.
3. Cleaning and maintenance is easier.
4. The lay-out of all the controllers and the operate parts is reasonable.
5. The speed adjustment of the driver is controlled by the frequency conversion device.
6. All the drive devices are located inside the machine so keep the machine clean.
7. The hydraulic system can assure the stable of the system.
8. An overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs, the machine stops automatically.
9. This machine also has electronic magic driver and other safety protection device which can be adjusted and operated when running.
Main technical parameters:
Die Specification | 23 stations | 33 stations | 35 stations | 37 stations |
Max. Pressure | 100KN | 80KN | 80 KN | 80 KN |
Max. Filling Depth | 17mm | 17mm | 17 mm | 17 mm |
Max. Diameter | 28mm | 13mm | 13 mm | 13 mm |
Max. Thickness | 8mm | 6mm | 6 mm | 6mm |
Rotated quantity | 14-30r/min | 14-36r/min | 14-36 r/min | 14-37 r/min |
Production capacity | 85000p/h | 140,000p/h | 150000 pc/h | 160000 pc/h |
Motor | 3Kw 380V 50Hz (220V 60Hz) | 3Kw 380V 50Hz (220V 60Hz) | 4kw 1440 r/min 380/50 V/Hz | 4kw 1440 r/min 380/50 V/Hz |
Overall Dimension | 1300×1200×1750mm | 1300×1200×1750mm | 1240x980x1650mm | 1230x950x1670mm |
Weight | 2000Kg | 2000Kg | 1700kg | 1870kg |
