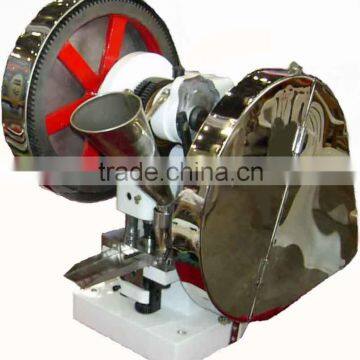

single punch tablet press
- 50 Set / Sets per Month
- shanghai
- Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | MINHUA | Model Number | TDP-1.5/5/6 | |
| Type | Other, Single Punch, Tablet Pressing Machine | Production Capacity | 4000 pc/h | |
| Max. Pressure(KN) | 60KN | Max. Tablet Thickness(mm) | 12mm | |
| Max. Tablet Diameter(mm) | 25mm | Voltage | 220V | |
| Power(W) | 1500 | Weight | 140KGS | |
| Dimension(L*W*H) | 580x600x700 | Certification | ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.single punch tablet press2.6mm-12mm tablet diameter
3.max tablet thickness for TDP-6
Descriptions
This machine is designed for pressing tablets from various granular materials,which is used for pharmaceutical,chemical,food, hospital,science research institution is applicable to trial manufacturing in lab or produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape.It features a small desktop type press for motive and control sheeting.It can also be hand -operated easy to be operated and maintained ,small volume, light weight. one set of punch and de is mounted the depth of the filling material tablet press and thickness of the tablets can be adjusted
Features
high precision of filling, low-noise, low-consumption of material, and it works smoothly. The minimum consumption of lab material is just 200g.
It is a good machine designed for the lab used for research and for development in hospital and industry and for small-scale production.
Special Features:
- Glossy Finished Stainless Steel Belt Cover
- Better Built and Most Affordable in its Class!
- Larger Diameter Tablets up to 14mm
- Presses both Round and Irregular Tablets
- Larger Motor and Compression Force
- Power Source: 220V,50Hz, Single Phase, AC or base your inquiry.
- Includes One (01) Free Set of Punch and Die
- Lab Use Only--Not suitable for mass production
- Friendly Support and Prompt Services
TDP-1.5, TDP-5,. TDP-6,
Technical Parameters
ITEM | TDP-1.5 | TDP-5 | TDP-6 |
Max. Pressure(KN) | 15 | 50 | 60 |
Max. Dia of Tablet(mm) | 12 | 20 | 25 |
Max. Depth of Fill(mm) | 12 | 18 | 16 |
Max. Thickness of Tablet(mm) | 6 | 6 | 10 |
Production Capacity(PC/h) | 5000 | 5000 | 4000 |
Motor | 550w1400r/min | 750w1400r/min | 1100w1400r/min |
Machine Size(mm) | 570x380x630 | 650x440x650 | 580x600x700 |
Net Weight(Kg) | 92.5 | 125 | 160 |
