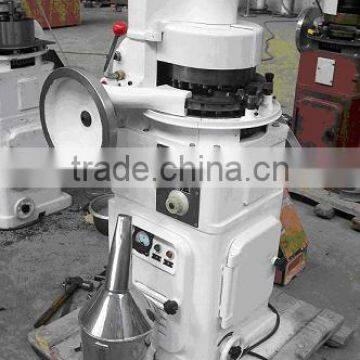

ZP-15,17,19 Series Rotary Tablet Press Machine
- Shanghai China
- Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | Minhua | |
| Model Number | ZP-15/17/19 | Type | Other, Rotary Tablet Press, Tablet Pressing Machine |
Product Description
Specifications
1.It carries 15/17/19 sets of punches and dies2.The depth of the filling material and thickness of the tablets can be adjusted
ZP series Rotary tablet press machine is designed for pressing round tablets from various kinds of granular materials. It is primary machine to fit batch production of tablets. During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage. A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused. This machine has won the fine Quality Product Prize awarded by China National Medical Management Bureau.
Main technical specifications:
ITEM | TYPE | ||
ZP15 | ZP17 | ZP19 | |
Dies | 15sets | 17sets | 19sets |
Max. Pressure | 60KN | 60KN | 60KN |
Max. Dia of Tablet | 26mm | 20mm | 13mm |
Max. Depth of Fill | 15mm | 15mm | 15mm |
Max. Thickness of Tablet | 6mm | 6mm | 6mm |
Turret Speed | 20-30 r/min | 22-35 r/min | 22-44 r/min |
Production Capacity | 27000 pc/h | 36000 pc/h | 45000 pc/h |
Motor | 3KW | 2.2KW | 2.2KW |
Overall Size | 760×750×1550mm | ||
Net Weight | 570kg | 560kg | |
Packing:
Export Stand Packing
