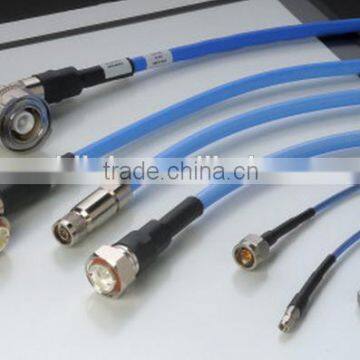

[UL Listed]High Performance RF and Microwave Coaxial Cable Assemblies

Our RF cable assemblies can be purchased with many different connector types and custom lengths depending on your needs and application. And they are used for medical, computer, LAN, RF, automotive, monitoring and communications equipment. If you require a special cable configuration not found here, you can create your own RF cable assembly configuration by writing E-mail or calling to us.

FEATURES:
Same high quality construction as 2249-C without molded strain relief.

MATERIALS:
Conn: 1
Impedance: 50/75 Ohms
Material: Body and Center Contact – Brass
Finish: Body: Tarnish Resistance
Center Contact: Gold Plated
Cable: RG58C/U
O.D.: (0.195)
Marking: “POMONA 5697”

RATINGS:
Voltage: Shield/Earth: 30VAC/60VDC Max.
Inner Conductor/Shield: 500VRMS Max.
Operating Temperature: +80°C. (+176°F.) Max.

ORDERING INFORMATION: Model 5697-XX
XX=Cable Length, Standard Length: 12” (305), 18” (457), 24” (610), 36” (914), 48” (1219), 60” (1524),
72” (1829), 96” (2438), 120” (3048), 144” (3658), 180” (4572), 240” (6096), 300” (7620), 360” (9144),
600” (15240)
Ordering Example: 5697-240 indicates 240” in length.

Shipping :

1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.

      Why choose us ?
1.OEM & ODM are warmly welcome
2.Good service and delivery on time
3. high gain with luxury design
4. several years manufacturing experience
5.Customized packing and customer's logo are accepted.
6.Sample order is welcome and it can be free if you are real customer.
7.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
8.Strong production ablility:Monthly output is over 50000pcs.
9.Professional factory directly sale all over the wrold.

This product is a universal product, we can customize your

products according to your demand.
