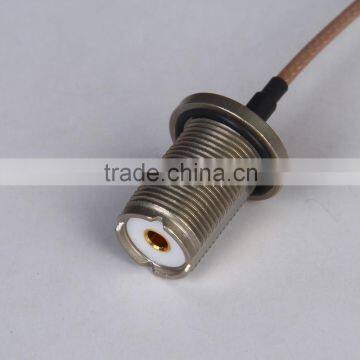

SMB to UHF copper wire connector for RG316 CABLE ASSEMBLY,

Our RF cable assemblies can be purchased with many different connector types and custom lengths depending on your needs and application. And they are used for medical, computer, LAN, RF, automotive, monitoring and communications equipment. If you require a special cable configuration not found here, you can create your own RF cable assembly configuration by writing E-mail or calling to us.

Applications:

Base Stations

1,WLAN

2,Instrumentation

3,Telecom

4,Radios

Electronical Specifications :
Impedance:50Ω
Frequency Range:0-11 GHz
Working Voltage:1000 VRMS max. at sea level
Dielectric Withstanding Voltage:2500 VRMS min. at sea level
VSWRStraight: 1.3 max., R/A: 1.5 max.
Contact ResistanceCenter Contact: 3 milliohm Max.
Outer Contact: 2 milliohm Max.
Insulator Resistance5000 megaohms min.

Material Specifications :
Center Contact:MaleBrass3μ" Gold or Silver per requirement
FemaleBeCu3μ" Gold or Silver per requirement
Body:Brass Nickel or Silver per requirement
Insulators:PTFENone
Clamp Gaskets:Silicone rubberNone
Crimp Ferrules:Annealed copperNickel or Silver per requirement

Shipping :

1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.

    Why choose us ?

1.OEM & ODM are warmly welcome
2.Good service and delivery on time
3. high gain with luxury design
4. several years manufacturing experience
5.Customized packing and customer's logo are accepted.
6.Sample order is welcome and it can be free if you are real customer.
7.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
8.Strong production ablility:Monthly output is over 50000pcs.
9.Professional factory directly sale all over the wrold.

This product is a universal product, we can customize your

products according to your demand.
