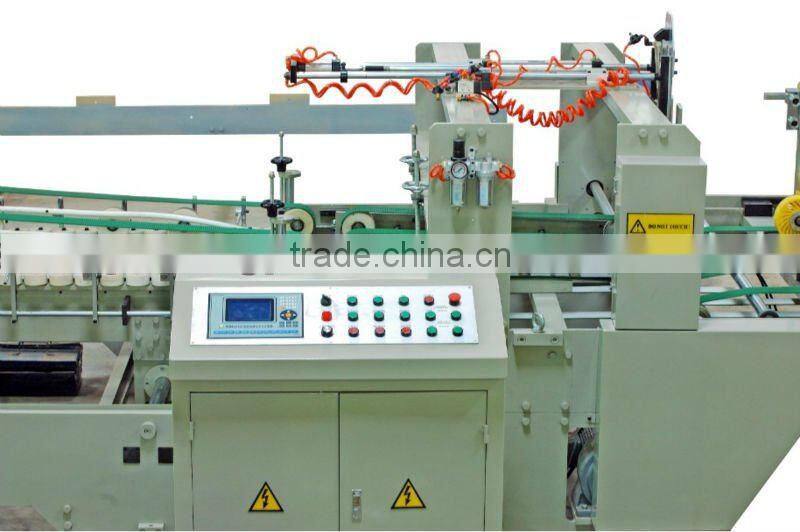

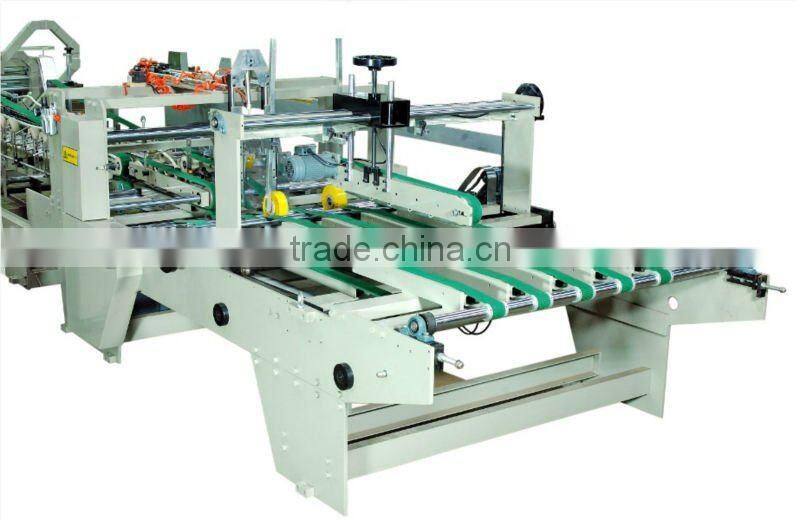

Corrugated Packing Machinery Fully Automatic Folder Gluer Machine

FOB Price

US$ 8,530 - 8,540 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Commodity
Packaging Type	Cartons	Packaging Material	Other, cardboard
Automatic Grade	Automatic	Driven Type	Electric
Power	8kw	Place of Origin	Shanghai, China
Brand Name	Qisheng	Model Number	YS
After-sales Service Provided	Overseas service center available

corrugated packing machinery fully automatic folder gluer machine 1.selling well more than 20 countries.
2.certificated

corrugated packing machinery fully automatic folder gluer machine

Features:

1.The average speed stick boxes:5000-10000/h;

2.Automatic for the paper ,automatic coating ,automatic folding ,automatic calibration.automatic counting automatic stacking;

3.Frequency control ,touch screen input data;

4.Effectively overcome the traditional stick scissors box appears the phenomenon of mouth and tail marks ,ensuring accuracy of sticky boxes ;

5.For forming a carton;

6.Significant savings in labor and improve efficiency.

Master technichal parameters

modal		YS-2000	YS-2400	YS-2800
Specification Of the Cardboard	Max H*L	1000*2000	1000*2400	1400*2800
	Min H*L	300*800	350*800	350*800
	Distance between the two Grooves B	150*600mm	150*800mm	150*800mm
	Distance between the two Grooves c	150*600mm	150*800mm	150*800mm
Applicable cardboard thickness(mm)		2-9mm
Adhesive		Polyvinyl Acetate Emilsion
Sheet feeding method		Friction Feeding
Formation mode
Compressed air		0.7-1.0Mpa
Total power of the whole machine		8kw	Total power of the whole machine	8kw
Running speed		180/min.
Cementing with		<=45mm
Power		380v
Machine overall dimensions(mm)		3000*11500	3200*11500	3600*11500
