Single Facer 2 Layer Carton Box e Flute Corrugated Cardboard Machinery
- Shanghai
- T/T Credit Card
You May Like
-
Automatic Corrugated Cardboard Pizza Box Printing Machine
-
Automatic Vacuum Belt Packaging Carton Box Machine Made in China
-
Automatic Corrugated Carton Rotary Cutting Machine
-
Automatic Paper Feeding Corrugated Carton Box Printing and Die Cutting Machine
-
Automatic Corrugated Carton Box Roller Cutting Machine
-
PE High Quality Cardboard Carton Box Tying Machine or Wrapping Machine
Product Details
| Condition | New | Type | Corrugating Machine | |
| Computerized | Yes | Place of Origin | Shanghai, China | |
| Brand Name | Qisheng | Model Number | QWDJ-B | |
| Voltage | 380V | Power(W) | 4 kw | |
| Dimension(L*W*H) | 7200*2400*1700 | Weight | 8000kg | |
| Certification | ISO | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Single Face corrugated cardboard making machine1. one year warranty
2.export to more than 20 countries
3.good service

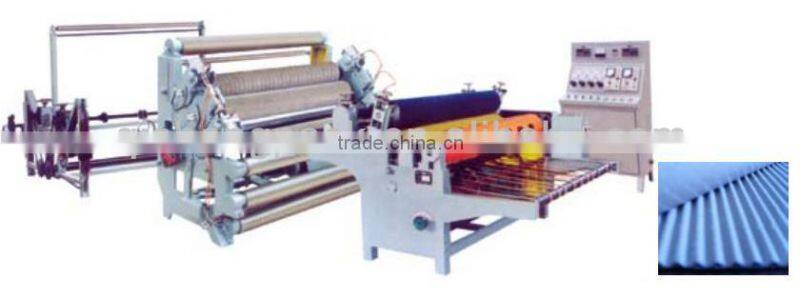

Single face corrugated cardboard making machine
This line is a special equipment to produce one-side corrugated paperboard by corrugating the web, automatic gluing, pressure adhering and cutting . The type of fluting is designed according to the international standard. Combing the international advanced structure with domestic demand. The line is characterized by its reasonable structure, new appearance, advanced technology , convenient operation, low energy consumption and small floor apace, suitable for small-medium package and color corrugated case producing.
Technical Parameter
Model | QDWJ-B1320 | QDWJ-B1450 | QDWJ-B1600 | QDWJ-B1800 |
Max.width of paper used | 1320mm | 1450mm | 1600mm | 1800mm |
Type of fluting | UV/A.B.C.E | UV/A.B.C.E | UV/A.B.C.E | UV/A.B.C.E |
Mechanical speed | 0-40m/min | 0-40m/min | 0-40m/min | 0-40m/min |
Heating electricity, steam, coal, gas | electricity, steam,liquid gas | |||
Grosscut length range | 250-1300mm | 250-1450mm | 250-1600mm | 250-1800mm |
Slitting width range | 0-9999mm | 0-9999mm | 0-9999mm | 0-9999mm |
power | 380V,50HZ,4KW 3-phase,380V,50HZ,4Kwtiming motor | |||
Weight | 6000kg | 7000kg | 8000kg | 8500kg |
