2014 Automatic Vacuum blood collection tube manufacturing machine

Condition	New		Application	Medical
Packaging Type	Case		Packaging Material	Wood
Automatic Grade	Automatic		Driven Type	Electric
Voltage	220v/380v		Power	3kw
Place of Origin	Shanghai, China		Brand Name	Poyton
Weight	2kgs		Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Specifications

1.New third type Fully auto assembly machine for vacuum blood collection tube
2. HIgh precision
3. Modularization design

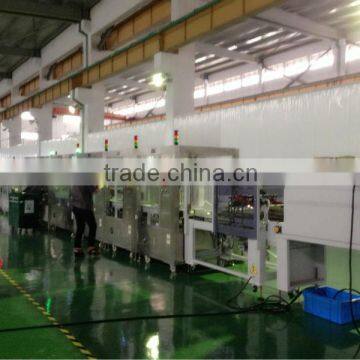

PY-FS Fully Automatic Modularization assembly production lines

Adopt Japan high technology combined Vacuum blood collection tube High precision spraying/filling requirements with fully auto assembling, which can realize Fully labeling--filling tube –spraying/filling additive –drying –transfer cap—vacuuming—capping-take out tube—put EPS tray processing.Adopt Modularization type and can realized modularization assembled.

Mainly station list:

1.Fully labeling station –2. fully filling tube-- 3. Filling/spraying additive (3 station sets –can changed separately) -4.Capping—5.drying-6 vacuuming —7. filling tube to tray—8 shrink package ( Empty tube tray cycle to filling tube station)

No. I Item Characteristic

1 Additive All additive : Clot Activator,Sodium citriate, Heparin Sodium, Heparin Lithium etc,EDTA (except Gel)

2 Spraying/filling Valve Precision spraying/filling

3 Capacity 12000-15000pcs/h

4 Tube spec. Dia12mm and 13mm or dia16mm (another machine)

5 Drying system 1set

6 Precision 2-5%

7 Machine material Exported 316 stainless

8 PLC Mitsubishi PLC (Japan)

9 Valve Germany

10 Drive system Servo motor

11 Air and pressure range 0.6Mpa≤P≤0.9Mpa filter precision ≤15μm

12 Power 20KW

13 Dimension 8600x1700x1700mm

14 Weight 3.2Ton

15 Worker No. 2

If you have interesting in our products,please no hesitate to contact us.
