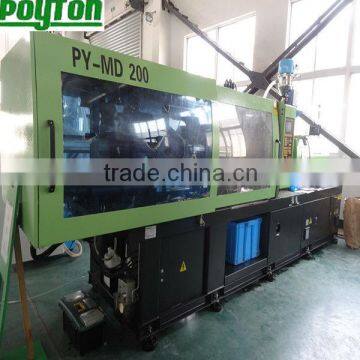

High speed systerm and Energy-saving injection molding machine
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Type | Preform Injection | |
| Style | Horizontal | Brand Name | POYTON- injection molding machine | |
| Model Number | PY- injection molding machine | Place of Origin | Shanghai, China | |
| Plastic Type | Thermoplastic | Automatic | Yes | |
| Injection Weight | series | Injection Rate | series | |
| Clamping Force | series | Opening Stroke | series | |
| Power(W) | 5kw | Certification | Iso9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.High speed systerm and Energy-saving GS68V injection molding machine2.High speed systerm
3.Energy-saving
4.short moulding
High speed systerm and Energy-saving GS68V injection
|
|
| GS68V | ||
A | B | C | |||
| Screw Diameter | mm | 26 | 30 | 34 |
Screw L/D Ratio | L/D | 24.2 | 21 | 19.5 | |
Shot size(Theoretical) | cm3 | 66 | 88 | 113 | |
PS) Injection Weight | g | 60 | 80 | 103 | |
PS Injection Rate | g/s | 60 | 80 | 103 | |
PS Plasticizing capacity | g/s | 6.3 | 8.4 | 10.3 | |
Injection Pressure | Mpa | 236 | 177 | 138 | |
Screw Speed | Rpm | 0-260 | |||
| Clamp Tonnage | KN | 600 | ||
Toggle stroke | mm | 270 | |||
Space Between Tie Bars | mm | 3310*310 | |||
Max.Mold Height | mm | 330 | |||
Min.Mold height | mm | 120 | |||
Ejector stroke | mm | 70 | |||
Ejector tonnage | KN | 22 | |||
Ejector Number | piece | 1 | |||
| Max.Pump Pressure | Mpa | 16 | ||
pump motor power | KW | 7.5 | |||
Heater Power | KW | 65.1 | |||
Machine Dimension(L*W*H) | m | 3.77*1.11*1.76 | |||
Machine Weight | t | 2.5 | |||
PS Hopper Capacity | Kg | 25 | |||
Oil Tank Capacity | L | 180 | |||
Poyton had provide the Turnkey solution for Vacuum blood collection tube projects in China, East European,
Russia, Venezuela, Brail, Kazakstan, Iran,Saudi Arabia, India, Africa etc. Zone and countries. Include machine
installation, debugging, production technology transfer, personnel training, raw material test and finished
products test etc,which got the high praise and good reputation by general customers.
