Automatic Vacuum blood collection tube manufacturing machine

Application	Medical		Packaging Type	Case
Packaging Material	Wood		Automatic Grade	Automatic
Place of Origin	Shanghai, China		Brand Name	Poyton

Specifications

1.New third type Fully auto assembly machine for vacuum blood collection tube
2. HIgh precision
3. Modularization design

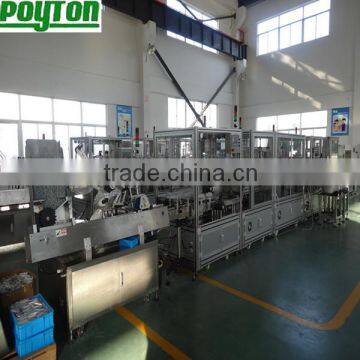

PY-FS Fully Automatic Modularization assembly production lines

Adopt Japan high technology combined Vacuum blood collection tube High precision spraying/filling requirements with fully auto assembling, which can realize Fully labeling--filling tube –spraying/filling additive –drying –transfer cap—vacuuming—capping-take out tube—put EPS tray processing.Adopt Modularization type and can realized modularization assembled.

Mainly station list:

1.Fully labeling station –2. fully filling tube-- 3. Filling/spraying additive (3 station sets –can changed separately) -4.Capping—5.drying-6 vacuuming —7. filling tube to tray—8 shrink package ( Empty tube tray cycle to filling tube station)

No. I Item Characteristic

1 Additive All additive : Clot Activator,Sodium citriate, Heparin Sodium, Heparin Lithium etc,EDTA (except Gel)

2 Spraying/filling Valve Precision spraying/filling

3 Capacity 12000-15000pcs/h

4 Tube spec. Dia12mm and 13mm or dia16mm (another machine)

5 Drying system 1set

6 Precision 2-5%

7 Machine material Exported 316 stainless

8 PLC Mitsubishi PLC (Japan)

9 Valve Germany

10 Drive system Servo motor

11 Air and pressure range 0.6Mpa≤P≤0.9Mpa filter precision ≤15μm

12 Power 20KW

13 Dimension 8600x1700x1700mm

14 Weight 3.2Ton

15 Worker No. 2
