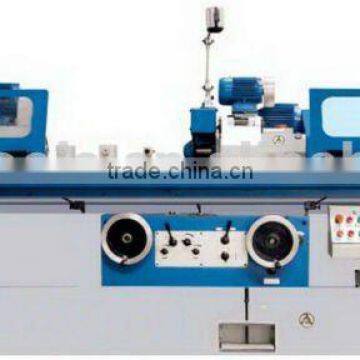

320*1000mm Universal Cylindrical Grinding Machine
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Universal | |
| CNC or Not | Normal | Place of Origin | China | |
| Brand Name | CTS | Model Number | 904-3062 |
Product Description
Specifications
Wheelhead cross feed driven by hydraulic;Inverter motor for the workhead to realize various speed.
Universal Cylindrical Grinding Machine 320×1000mm
Order No. 904-3062
Specifications:
Distance between centres : 1000mm
Center Height: 180mm
External Grinding Capacity: 8~320mm
Max. outside grinding depth: 1000mm
Internal Grinding Capacity: 30~100mm
Max. internal grinding depth: 125mm
Max. weight of work piece: 150kg
Workhead:
Swivel angle: +90°
Center taper: MT4
Spindle speed: 25~220rpm stepless
Wheelhead:
Max. wheelhead spindle speed: 1670rpm.
Wheelhead rapid travel: 50mm
Max. wheelhead travel: 246mm
Max. wheelhead swivel angle: ±30°
Handwheel per rev.: 2.0mm (rough), 0.5mm (fine)
Handwheel per gra.: 0.01mm (rough), 0.0025mm (fine)
Wheel size: 400×50×203mm
Peripheral velocity: 35m/s
Internal grinding:
Spindle speed: 10000rpm (15000rpm optional)
Internal grinding wheel: max. 50×25×13mm; min. 17×20×6mm
Table travel per handwheel rev.: 6mm
Max. swivelling angle of table: clockwise: 3°; anticlockwise: 7°
Longitudinal travel speed of table: 0.1~4m/min
Quill travel of tailstock: 30mm
Wheelhead motor power: 5.5kw
Internal grinding 1.1kw
Power of workhead motor: 1.5kw
Machine weight: 5300kg
Packing size: 3220×2000×2050mm
