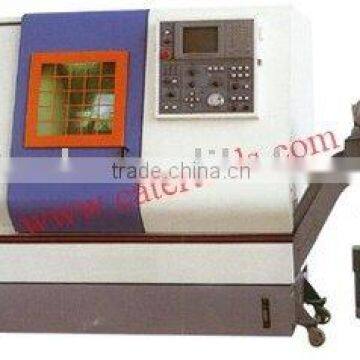

CNC LATHE
Negotiable
1 (Min. Order)
You May Like
Product Details
| Condition | New | Type | Turning Center | |
| CNC or Not | CNC | Place of Origin | China | |
| Model Number | 920-1406 |
Product Description
Specifications
Max.swing over bed 360mm(14")Max.cutting dia for axle parts 150mm(6")
cnc lathe
cnc lathe
| Order No. | 920-1406 |
| Max.swing over bed | 360mm(14") |
| Max.cutting dia for axle parts | 150mm(6") |
| Max.cutting dia. for disc parts | 250mm(10") |
| Max. cross travel(X) | 150mm(6") |
| Max. longitudinal travel(Z) | 320mm500mm(12"19-5/8") |
| Rapid feed for axis X | 12m/min(427in/min) |
| Rapid feed for axis Z | 20m/min(787in/min) |
| Max. longitudinal travel (z) | 6000r/min |
| Taper bore of spindle | M.T.No.5 |
| Spindle nose | A2-5 |
| Hydraulic chuck | 6" |
| Number of tools | 8 |
| Outside dia. Of cutting tool shank | 20x20mm(7/8"x7/8") |
| Inner dia. Of cutting tool shank | φ25mm(1") |
| Hydraulic tailstock sleeve dia. | φ80mm(3-1/8") |
| Tailstock sleeve travel | 90mm(3-1/2") |
| Min. displacement | 0.0005/0.001mm |
| Min. input | 0.001mm |
| Manual pulse generator | 0.001/0.01/0.1mm |
| Bed structure | 45°slant bed integrated with stand |
| Guide ways X&Z | Precision linear ball rail |
| Tool compensation model | Wear/geometric |
| Metric/Inch switch function | G20,G21 |
| MNI/CRT unit | 9" single color display |
| Main motor power(X/Z) | 5.5/7.5kW(7.5/10HP) |
| Drive motors power(X/Z) | 1.0/1.0kW |
| Capacity for coolant | 100L |
| Overall dimensions(L¡ÁW¡ÁH) | 2700x1460x1680mm |
| Net weight | 3600kg(7930lbs) |
