2015 Hot Sale Econimic Gas Pressure Gauge Manometer

FOB Price

US$ 2.5 - 150 / Piece

1 Piece(Min. Order)

Port Xi'an Shanghai or other
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shaanxi, China		Brand Name	GX support oem
Model Number	GXPS series

Product Description

2015 hot sale econimic gas pressure gauge manometer

Product Description

Application

The pressure gauge can be used in measuring the pressure of the service medium which has no corrosion functional of the carbon steel, stainless and solders like tin. Mainly used in measuring the pressure of the liquid or gas of the ammonia which will be concern in fertilization manufacture and the refrigeration equipment.

Structure

The gauge is made up of measuring pressure system (involve connector, bourdon tube).gear setting, pointer setting and outer case. When the service medium act on the flexibility parts and make it move, with the help of the stick, magnified by the gear setting and the pointer point it out on the dial.

Parameter

Type	Scale range
GXA-100	0-0.1,0.16,0.25,0.4,0.6,1,1.6,2.5,4.6,10,16,25,
GXA-150	0-40,60,-0.1-0,0.06,0.15,0.3,0.5,0.9,1.5,2.4

Accuracy:2.5,1.6

Environment condition:-40°C~70°C,relative humidity is no more than 90%.
Temperature in flence:when the environment temperature deviate from 20±5°C,the additional error is no more than 0.4%/10°C.
Weight: 0.6kg (YA-100)

0.9kg (YA-150)

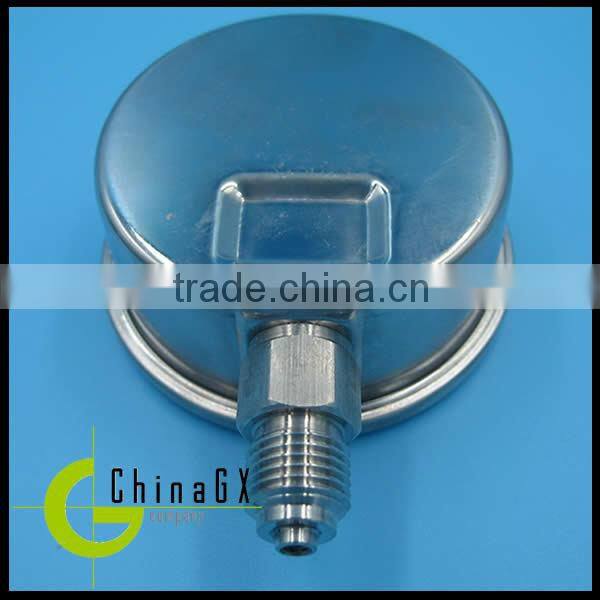

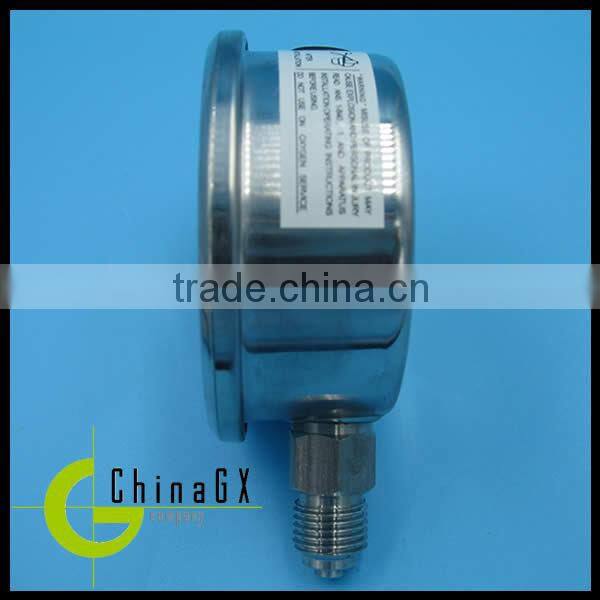

Product pictures

Packaging & Shipping

Our Services

The quality principle: Quality is the best sales

Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow

Shipping:

1.All parts will be shipped out within 1 - 3 working days after comfirm the payment

2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex

3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service.

4.Any import fees or charges are afforded by the buyers

Service :

1.Provide you one-stop service of electronic components

2. Competitive price advantage help to save your purchase cost and bring in you more profits

3. Having advanced e-commerce capabilities

4. Quick and accurate delivery and flexible logistics support

5. Personalized service, based on your programs and ideas to serve you
