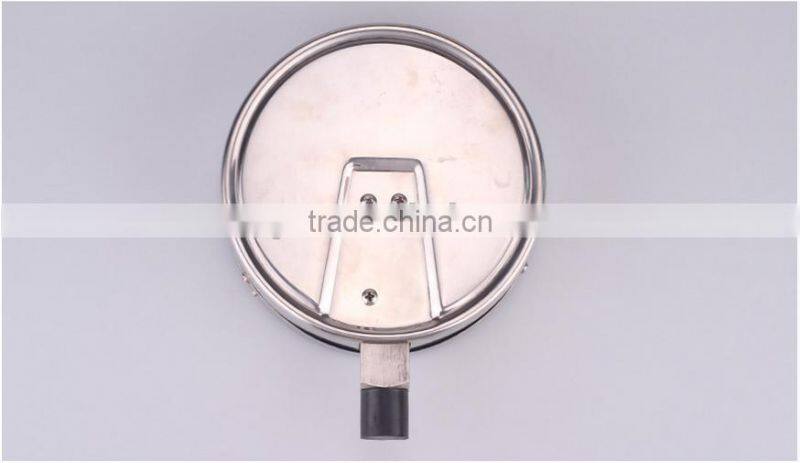

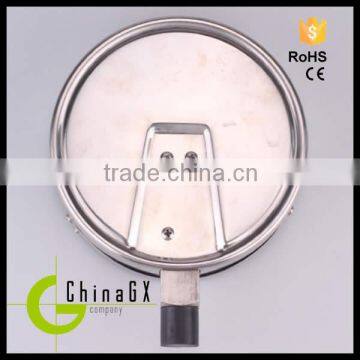

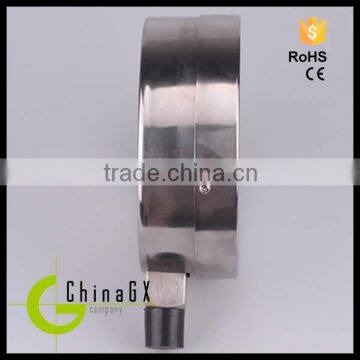

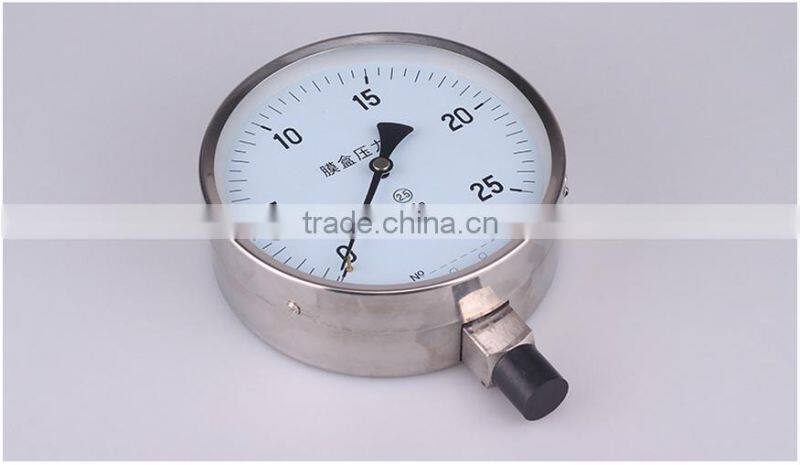

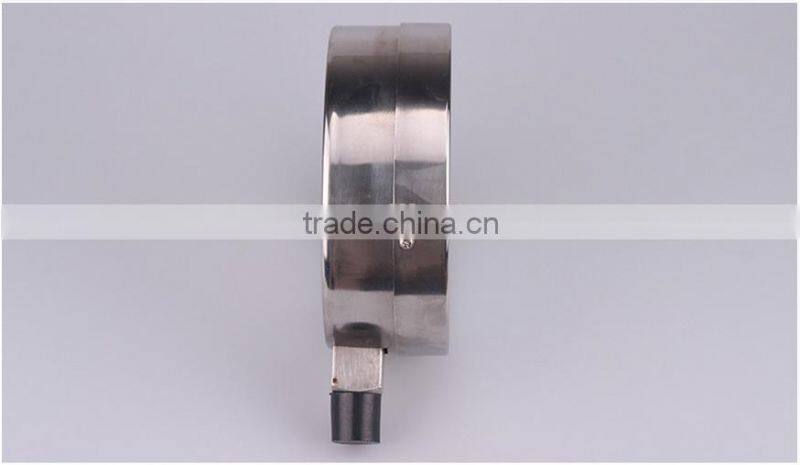

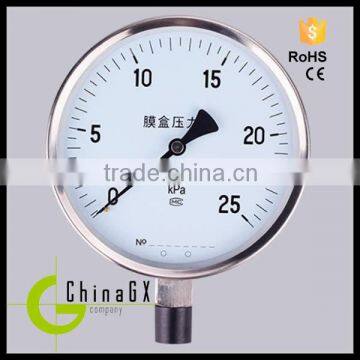

Low Price Stainless Steel Pressure Gauge Manometer
- Xi'an Shanghai or other
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Precision Mechanical Digital Pressure Gauge With Signal Output
-
Miniature 316ss Silicone Oil Filled Small Vacuum Gauge
-
Medical Digital Manometer
-
Low Price Stainless Steel Small Vacuum Gauge
-
Wholesale High Quality Digital Pressure Manometer Gauge
-
Hot!!! Manufacturer Supply Low Price VG Series Stainless Steel Oil, Air, Hydraulic, Water Pressure Gauge Manometer

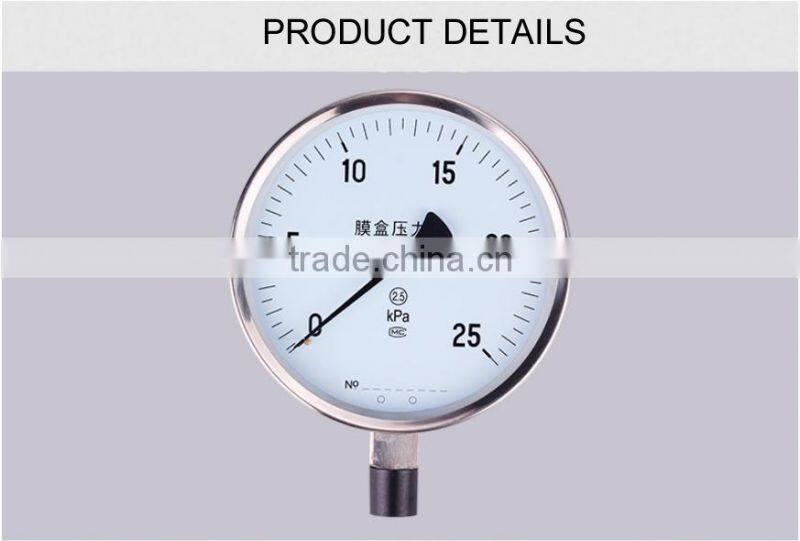

Product Details
| Place of Origin | Shaanxi, China | Brand Name | GX or OEM | |
| Model Number | PGV |
Product Description
PGV series filled pressure gauge is based upon the advanced process technology of world.It is suitable for measuring the pressure or vacuum of liquid,gaseous and vaporous media that will not explode,crystallize or corrode the elements.
Especially,it offer a significant cushioing and dampening effect,so can steadily indicate the pressure of media in a sharp pulsation condition.
| PVG series pressure gauge | ||||||
| Model NO | Diameter | pressure range | accuracy(%) | scale Unit(option) | mounting | application |
| PVG60 | 60mm(2.5') | 0~0.1MPa, 0~60MPa, -1~0MPa, -0.1~2.4MPa | 2.5, 1.6, 1.0 option | Pa, Psi,Bar, torr, ATM, mmHg, inHG, Kgf/m2 | bottom | gas, liquid, steam, etc |
| PVG60-1 | back | |||||
| PVG100 | 100mm(4') | 0~0.1MPa, 0~100Mpa, -1~0MPa, -0.1~2.4MPa | bottom | |||
| PVG100-1 | back | |||||
| PVG150 | 150mm(6') | bottom | ||||
| PVG150-1 | back | |||||
Item name | Scale range (Mpa) | Accuracy grade |
Stainless steel pressure gauge | 0-0.1,0.16,0.25,0.4,0.6,1, 1.6,2.5,4.6,10,16,25,40,60, -0.1-0,0.06,0.15,0.3,0.5, 0.9,1.5,2.4
| 2.5 or 1.6 |
Oiled stainless steel pressure gauge | ||
Stainless steel pressure gauge with black flange | ||
Pressure gauge back connection with front flange glycerin filled |

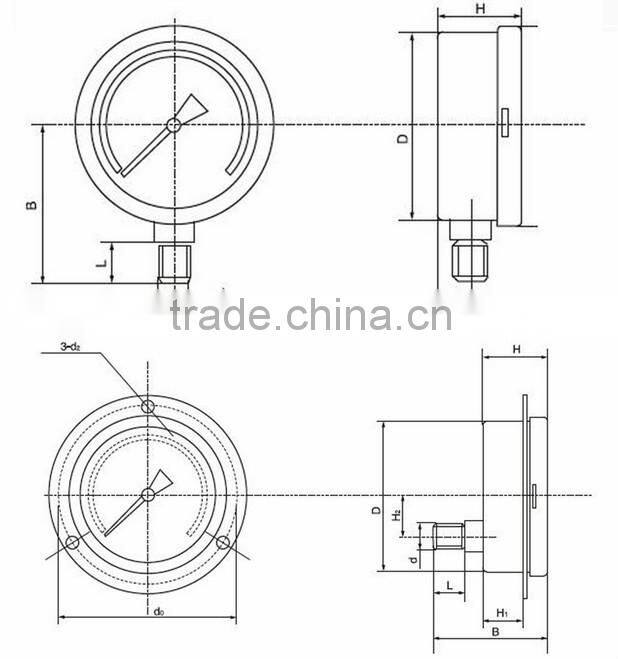

| Type | D | H | H2 | B | D2 | d0 | d | L | H1 |
| PGV60 | Ø60 | 32 | 13 | 55 | M14x1.5 | 14 | 22 | ||
| PGV60AT | 0 | 65 | 4.5 | 76 | |||||
| PGV100 | Ø 100 | 44 | 18 | 90 | M20x1.5 | 20 | 27 | ||
| PGV100AT | 30 | 90 | 5.5 | 118 | |||||
| PGV150 | Ø 150 | 44 | 18 | 120 | M20x1.5 | 20 | 27 | ||
| PGV150AT | 55 | 95 | 5.5 | 165 |
| The quality principle: Quality is the best sales |
| Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow |
| Shipping: |
| 1.All parts will be shipped out within 1 - 3 working days after comfirm the payment |
| 2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex |
| 3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service. |
| 4.Any import fees or charges are afforded by the buyers |
| Service : |
| 1.Provide you one-stop service of electronic components |
| 2. Competitive price advantage help to save your purchase cost and bring in you more profits |
| 3. Having advanced e-commerce capabilities |
| 4. Quick and accurate delivery and flexible logistics support |
| 5. Personalized service, based on your programs and ideas to serve you |
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
2. How about the usual delivery time?
We will send goods to you within 15 working days.
3. What terms of payment are available?
TT, Western Union and Paypal, LC , DP, DA and Moneygram
4. What detailed informations do we need if you want to order our procduct ?
Pressure range, diameter, accuracy, mounting, and other related parameters.
5. Does quantity affects price?
Yes. For larger quantities, we will give you some discount.
