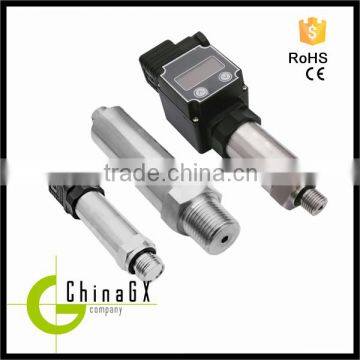

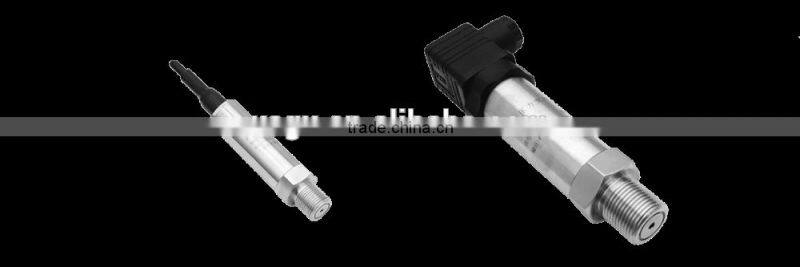

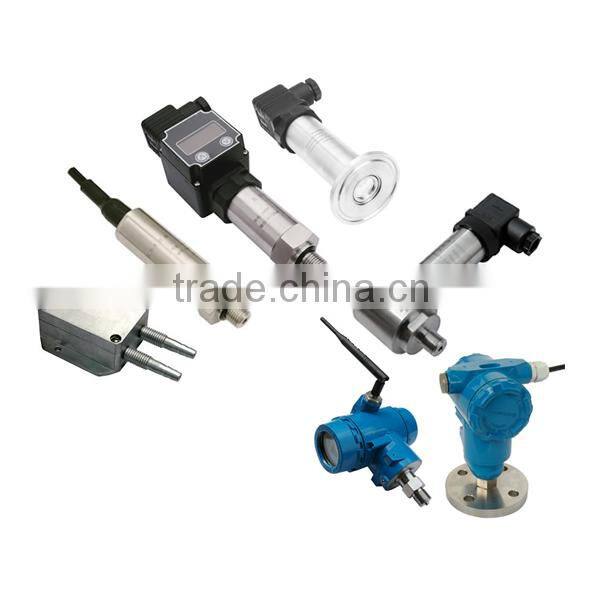

Ceramic Piezoresistive Silicon Pressure Sensor

Spec.

Value

Pressure range

0~0.2MPa...60MPa

2bar…600bar

29psi…8700psi

20000MmH20…6118000mmH2O

1.97atm…592atm

Load pressure

1.5 times nominal value pressure (1.5X)

Rupture pressure

3 times nominal value pressure (3X)

Accuracy

±0.5%F.S(PT 300 or MARS for higher accuracy are available)

Stability

Typical value 0.25%F.S,      Max. value: 0.4%F.S

Operating temperature

-40°C~120°C

Compensation temperature

-10°C~70°C

Medium compatibility

All Caustic Medium Compatible with 1Cr18Ni9Ti

Electrical performance

2 wire system

3 wire system

Output signal

4~20mA

0~5V

1~5V

0.5~4.5V

0~10V

Power supply

10~30Vdc

8~30Vdc

5V(ratio)

11~30Vdc

Load pressure

 (U-10)/0.02(Ω)

>100kΩ

Insulation

>100M Ω@50V

Electric strength

500V@60 second

Vibration/Impact

10g/5~2000Hz, axes X/Y/Z20g sine 11ms

Pressure durable

2×10⁶pressure circle @25°C

Display range

-999~1999@(PT110&PT111)

Contact capacity

(24V, 1A)@PT111

Electrical connection

Hirsmann , air plugs, fixed cable, water proof cable

Pressure port

M20×1.5, G1/4, G1/2, R1/2, NPT1/2

Pressure type

G, S

Response time: 10ms

Certificate

Intrinsically safe mode E, CE

EMI/EMC

EMI: EN50081-1/-2; EMC: EN50082-2

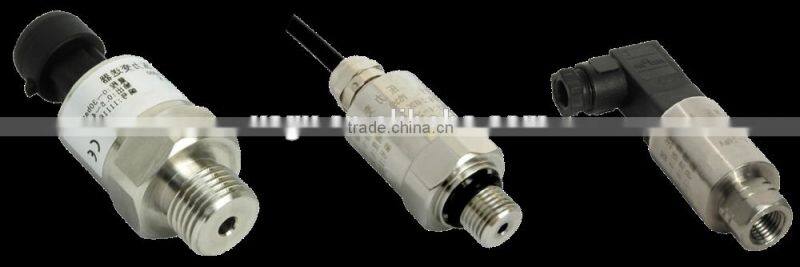

Spec.

Value

Pressure range

0~2bar ......600bar

Load pressure

1.5times nominal value pressure (1.5X)

Rupture pressure

3times nominal value pressure (3X)

Accuracy

±0.25%F.S, ±0.5%F.S, ±1.0%F.S

Stability

Typical value 0.5%F.S,      Max. value: 1%F.S

Operating temp

-40°C~125°C

Storage temp.

-40~120°C

Compensation temp

-10°C~ 80°C

Medium compatibility

All Caustic Medium Compatible with 1Cr18Ni9Ti

Electrical performance

2 wire system

3 wire system

Output signal

4~20mA

0.5~4.5V

0-10V

Power supply

10~30Vdc

5Vdc

15~30Vdc

Load pressure

(U-10)/0.02(Ω)

>100kΩ

Insulation

>100M Ω@50V

Electric strength

500V@60 second

Vibration/Impact

10g/5~2000Hz, axes X/Y/Z20g sine 11ms

Pressure durable

2×10⁶pressure circle @25°C

Electrical connection

Packard, Hirsmann , air plugs, fixed cable, water proof cable

Pressure port

G1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2,

Pressure type

G, S

Response time: 10ms

Certificate

Intrinsically safe mode E, RoHS; CE

EMI/EMC

EMI: EN50081-1/-2;  EMC: EN50082-2

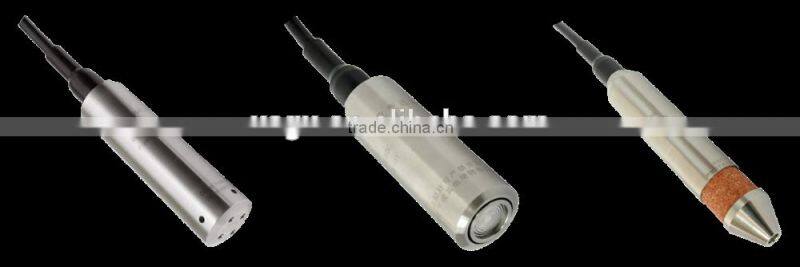

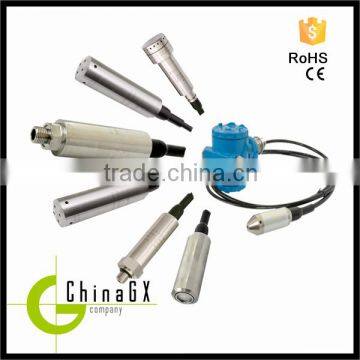

Spec.

Numerical value

Pressure range

0~1……500mH2O

0~9.8KPa…4900KPa

0~0.09bar…49bar

0~0.09atm…48atm

0~1.4psi… 711psi

0~2.8inchHg…1400inchHg

Overload pressure

1.5times Rated pressure

Secondary containment

3 times rated pressure

Accuracy

±0.25%F.S,   ±0.5%F.S,  ±1.0%F.S

Stability

Typical value: 0.1%F.S   Max.: 0.2% F.S/year

Operating Temp.

-40°C~85°C  or -40 °C  ~125 °C

Compensation Temp.

-10°C~70°C

Medium compatibility

All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L

Electrical properties

2 line

3 line

Output signal

4~20mA

0~5V

0~10V

Power supplies

9~30Vdc

8~30Vdc/ac

11~30Vdc/ac

Load resistance

(U-10)/0.02(Ω)

> 100kΩ

Insulation

>100MΩ@50V

Electrical Connections

waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue   protection grade : IP68

Pressure interface

G1/4,input type

Response time

10ms

Electric strength

500Vac@1 second

Elec compatibility

electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2

Lightning protection

air conduction resistance 8000V,case, cable conduction

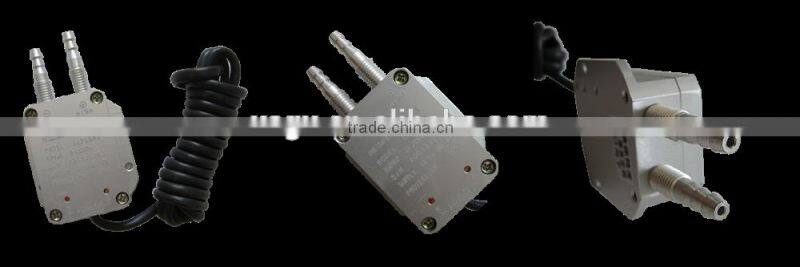

Parameter table

Measuring range

0-100Pa~100Kpa, -50KPa~-50Pa-50Pa~50Kpa

Protection

IP65

Medium Measurement

Non-corrosive dry gas, weak corrosive and damp gas

Output signal

4~20mA, 1~5V, 0~5V Optional

Power supply

24VDC

Accuracy

±0.2% F.S., ±0.5% F.S., ±1% F.S. Optional

Adjustment

Zero and range are adjustable externally

Medium temperature

-10~100°C

Ambient temperature

-20~80°C

Electric Interface

Outlet cable

Shell material

Aluminum alloy

Spec.

Value

Remarks

Type

GXPS602

GXPS602A

GXPS602C

1MPa≈145PSI

Pressure range

0~2MPa……60MPa

= 0~290.076PSI…8702.28PSI

=0~20BAR…600bar

0~203.893mH2O…6116.2mH2O

1mH2O=9.81Kpa

Over pressure safe

1.5 times nominal pressure (1.5X)

Secondary Containment

3times nominal pressure(3X)

Power supply

10~30Vdc

3.6Vdc battery

Static operating current

<15mA

<1mA

Accuracy

0.5%

1.0%

Output signal

RS485

Electric interface

RS485

Pressure type

Gage pressure, Absolute pressure

Operating temp.

-10°C~60°C

Pressure port

M20×1.5, G1/4, G1/2, NPT1/2
