Day and Night Vision IR Outdoor Waterproof High speed 36X 650tvl PTZ Camera

Model

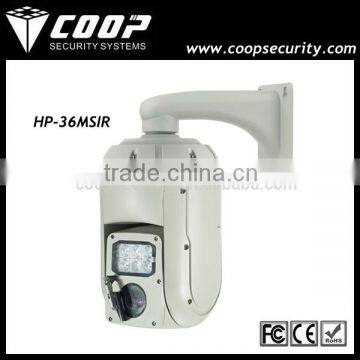

HP-36MSIR

HP-24MSIR

Camera

Image Sensor

1/4 type interline transfer CCD

Effective Pixels

NTSC: 976(H)x494(V)

PAL: 976(H)x582(V)

Scanning Mode

2:1 interlace

Scanning Area

3.6(H)x2.7(V) mm

Horizontal Resolution

650 TV line typical

Minimum Illumination

Color 0.5 lx (50 IRE, F1.4, Shutter: NTSC 1/60 sec,

PAL 1/50 sec, Gain: High, Sense UP:OFF)

B/W 0.04 lx (50 IRE, F1.4, Shutter: NTSC 1/60 sec,

PAL 1/50 sec, Gain: High, Sense UP:OFF)

Video S/N Ratio

More than 50 dB (AGC: OFF)

Backlight compensation

Multi / Center / OFF (Mask settings possible)

White Balance

AWC / ATW / MWB (Adjustable R and B signals) / Outdoor / Indoor / Fluorescent

Iris Conrtrol

Auto / Manual

AGC

Low / Middle / High / OFF (Adjustable)

Super Dynamic

ON / OFF (ON: 54 dB typical)

Electronic Shutter

NTSC:1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10 000 sec.

PAL :1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10 000 sec.

Long shutter : x1, x2, x4, x6, x10, x16, x32, x64, x128, x256, x512

Electronic Sensitivity UP

Auto / OFF, max 32x

Electronic iris

ON / OFF

Day & Night (IR)

Auto / Color / BW

Digital Noise Reduction

High / Low

Gamma

0.45 / 1 / SMART1 / SMART2

Video Motion Detection

ON / OFF, adjustable sensitivities

Privacy Mask

ON / OFF, up to 8 zones

Mirror Image Effect

H/V / HV / OFF

Image Stabilizer

ON / OFF

Camera Title (OSD)

16 alphanumeric characters (cameraID:8 + Title:8)

Auto Focus

Auto / Manual / One-Push / Stop AF

Aperture compensation

ON / OFF (H/V settings possible)

Synchronization

Internal / External (V-sync.)

LENS

Focal Length

3.3 mm ~119 mm / F1.4-4.2

3.3 mm ~ 79.2 mm / F1.4-2.8

Zoom Ratio

36x Optical Zoom, 20x Ditgital Zoom

24x Optical Zoom, 20x Ditgital Zoom

View Angle

Horizontal : 1.7°~ 60.2°

Vertical : 1.3°~ 46.0°

Diagonal : 2.2°~ 72.8°

Horizontal : 2.7°~ 60.2°

Vertical : 2.0°~ 46.0°

Diagonal : 3.4°~ 72.8°

Pan and Tilt

Manual Speed

Pan(0.4°~180°/S) Tilt(0.4°~80°/S)

Rotation

Pan 360°Continuously Tilt0-105° Auto Flip

Focus Speed

Speed adjustable base on focus distane

Preset

128

Function

PRESET/TOUR/SCAN/PATTERN

Display Zone

8 editable title zone

Alarm function

7CH Alarm in, 2CH alarm out

 Video Out

 1.0Vp-p,75Ω,BNC Connector

Communicate

RS485 Bus

Protocol

PELCO-D,PELCO-P,KALATEL,VCL,MOLYNX,VICONEtc

Baud Rate

2400/4800/9600/19200 bps

Camera ID

1~254

Infrared

IR Distance

120M

IR Instnsity

Automatically adjusted,depending on the zoom ratio

Alarm

Alarm Input

7 Alarm input

Alarm Output

2 Alarm Output

Input/output

Monitor Output

NTSC: Composite, 1.0 Vp-p, 75 Ω

PAL : Composite, 1.0 Vp-p, 75 Ω

General

Menu Language

English,Chinese

Working Temperature

-40°C~+60°C

Working Humidity

0~95%(None condensation)

Protection

IP66,4000W lighting proof, wave proof, surge-proof

 Power

AC 24V±4V

 Consumption

 (PTZ+IR)33W    (PTZ+IR+Heating)53W

 Measure

 L520×W320×H300mm

 Weight

 9.68KG
