Outdoor Sony CMOS HS-SDI 2MP High Speed Dome Camera 20X Zoom IR PTZ 1080P Camera

Specifications

Outdoor Sony CMOS HS-SDI 2MP High Speed Dome Camera 20X Zoom IR PTZ 1080P Camera CC-24MSHD-SDI

20X Zoom IR PTZ 1080P Camera Features:

• Humanistic design, fashion Structure, Easy for Installation and Maintenance
• Clear Night-vision distance of IR LED light 120M
• Pan:360°, Non-Limited Position, Pitching 105°(-90°~15°), Non Blind spots
• Humanize focus and speed proportion.
• 128 Presets (Titles can be set), according to Preset run Tour, also can setting the preset speed and stay time
• 8 programmable zones with titles, 4 PATTERN ), Each records time is not less then 180s
• 4 Scan, support scan between left and right limit at an appointed speed.
• Built-in OSD Menu,can change information and parameter of dome through menu, also can set and call presets, tour, scan, pattern, camera mode and display name etc.
• Park action function, can auto-call presets or start-up tour, pattern and scan after dome idle for a period of time
• 7 alarm input, 2 alarm output, support linkage. (To call preset pattern, scan, tour, display areas etc)
• Real time function, preset, scan etc action runs based on time sections pre-setting by OSD menu.
• Memory store function, built-in memorizer which can store parameters of camera & functions of PTZ.
• Temperature display function, can survey the temperature inside of dome.
• Fan enable function, through pre-setting the temperature to start-up the fan.
• Display function of Pan/tilt position and zoom, provide a port for motion-tracking and data processing
• Privacy masking Function
• Communication: RS485, Manchester, BI-PHASE, Coxial Video Control
• Support Built-in Protocol, Completely compatible PELCO-D, PELCO-P, KALATEL, AD, PHILIPS, MOLYNX and So on
• IP66 All-day protection cover, Built-in constant temperature device.
• Built-in TV4000V Light-proof, Surge-Proof, Wave-Proof

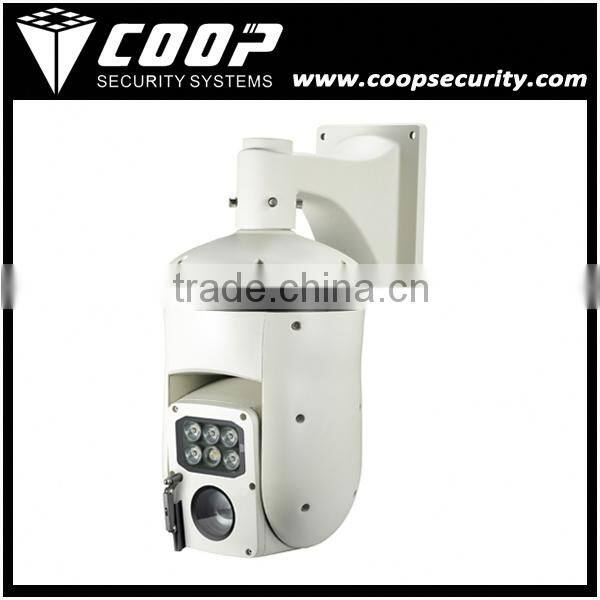

20X Zoom IR PTZ 1080P Camera Pictures:

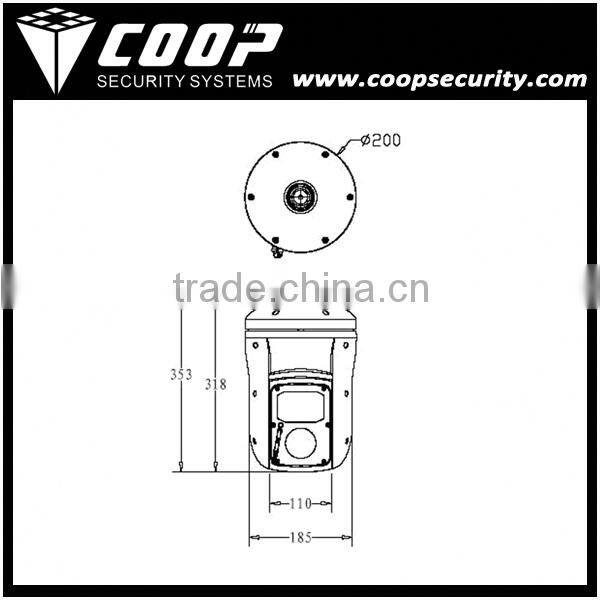

20X Zoom IR PTZ 1080P Camera Specification:

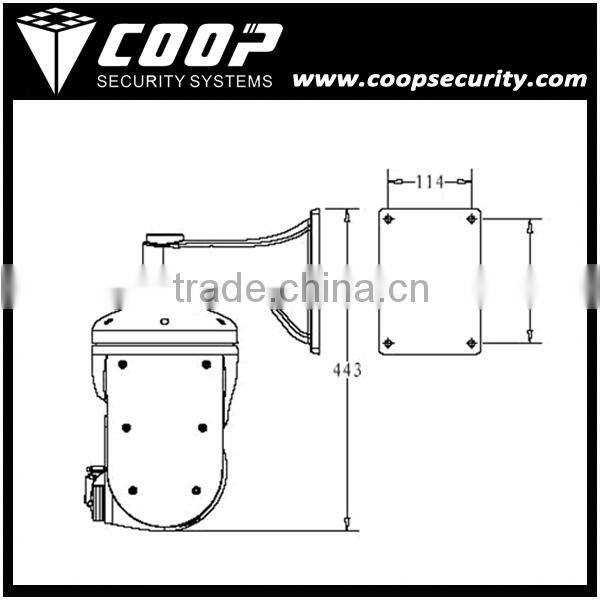

20X Zoom IR PTZ 1080P Camera Auxiliary Bracket:

20X Zoom IR PTZ 1080P Camera Other Light Sources:

                      Laser PTZ Dome Camera                                                            White LED PTZ dome Camera
                     Night Vision:250M-300M                                                                Night Vision:100-120M
