Jinan Missile 3d Carving Marble Granite Stone Cnc
- Qingdao
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


Low Cost 9015 3d Stone Cnc Cutting Router for Sale
 -


Double Head High Quality 1325 Granite Marble Carving Stone Cnc Machine
 -


Heavy Bed High Speed China 1325 Marble Granite Carving Stone Cnc Machine
 -


2016 Hot Sale Granite Marble Engraving Stone Cnc Cutting Router Machine
 -


Heavy Duty 1325 Double Heads Stone Engraving Cnc Router
 -


China Cheaper Double Heads Metal CNC Stone Carving Machine

Product Details
| Condition | New | Type | CNC Router | |
| Use | Granite | Production Capacity | Month | |
| Place of Origin | Shandong, China | Brand Name | MISSILECNC | |
| Model Number | 1325S | Voltage | AC380V/50Hz | |
| Power(W) | 5.5kw | Dimension(L*W*H) | 3070*2020*1630mm | |
| Weight | 1600kg | Certification | CE Certificate | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

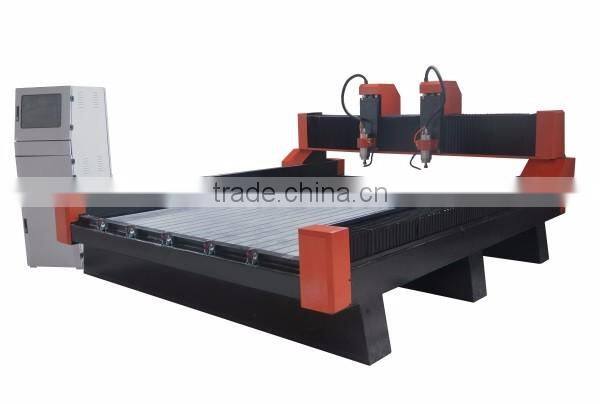

jinan missile 3d carving marble granite stone cnc
Product description:
Our stone cnc is designed for 3d carving plain stone matertial. Granite stone cnc is used to process kinds of stone, and also solid wood, MDF, plywood, acrylic, PVC etc. This marble granite stone cnc integrate with the heavy thick lathe and water tank. We have carving stone cnc with 200 sets storage capacity each month. And our china 3d stone cnc have passed BV&CE certification.
Parameter:
X,Y,Z Working Area  | 1300x2500x250mm  |
X,Y,Z Repositioning Accuracy  | ±0.05mm  |
Table Surface  | T-slot Table  |
Frame  | Welded structure  |
X, Y axis transmission  | Rack and Pinion gear  |
Z transmission  | Ball Screw  |
Rail Configuration  | 20 square rail  |
Max. Traveling Rate  | 25000mm/min  |
Max. Working Speed  | 15000mm/min  |
Spindle Power  | Water cooling 5.5KW(Opitioinal 3.0/4.5/7.5kw) spindle  |
Spindle Speed  | 24000RPM  |
Drive Motors  | Stepper System (Opitional Yaskawa/ Panasonic Servo motors)  |
Working Voltage  | AC380V/50Hz/3PH  |
Command Language  | G Code  |
Operating System  | Ncstudio System (Opitional:DSP)  |
Computer Interface  | USB  |
Software Compatibility  | Type3,Wentai,Artcut (Option: )  |
Packing Size  | Wooden case  |
N.W.  | 1600Kg  |
Features:

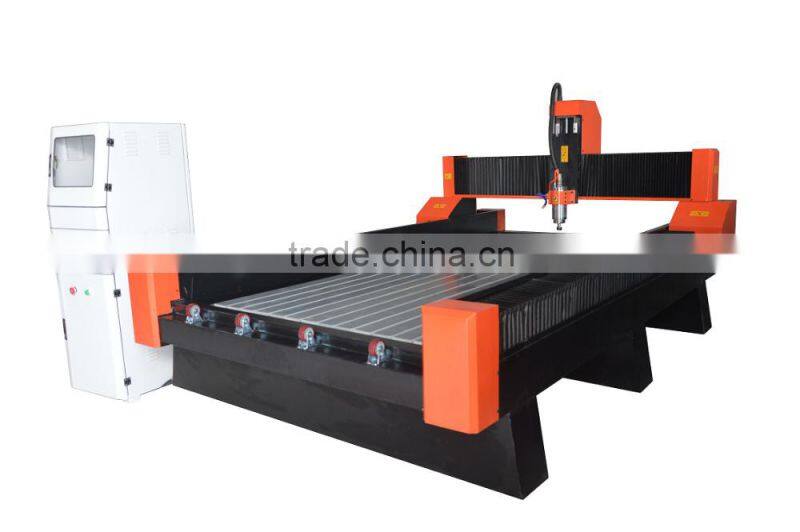

This 1325S is our professional stone/marble/granite 3d engraving cnc router.
1. Its structure is welded with thick square pipe, which strenthen hole lathe bed stability.
2. X and Y axis is transmissed by helical rack and Z axis is ball screw tranmission with high precise.
3. We adopts Leadshine stepper driving system with high-speed, high precision and long service time.
4. Our machine is controlled by NC-studio with computer, which shows whole manufacturing process on screen.
5. Optional parts: Air-cooling spindle, DSP handle control system, servo motor and driver, etc.

The accessory

The samples & application
It is widely used for marble, granite, tombstone, ceramic tile etc kinds of material, for relief carving and plane engraving. It also can engraving and cutting wood, acrylic, aluminum, cooper and brass well.
Our Company:
We can guarantee the machine made in our factory, all have our brand: If you need to check, welcome to our company and visit our factory.
We have specialists on the CNC Router Machine researched, including all kinds of machines: like woodworking CNC Router, Stone CNC Router, CNC Router with Pneumatic Tool Changer and Automatic Tool Changing CNC Router, Advertising CNC Router etc.
Based on the strong sales network and stable quality, for the best selling products we all have wide stock to make satisfied with your needs, then save your time and money on the shipment.
We have the technical sales managers who can speak fluent English,answer you questions in 24 hours.
Workshop
FAQ
1.Question: what is this machine used for? Do i need a cnc router?
If you are here I assume you are thinking about buying a CNC router or some other CNC machine. Without a doubt these are amazing machines that can improve your business or project tremendously. However, there are many other types of CNC robotics that may be better fitting for your application.
This machine can be used for furnitures engraving, room decorations, industrial equipment parts, music instrument, mold, art&craft, building models and advertisment industry.
2.Question: How can i find a machine which can satify my requirement within my budget? Which one is the right one for me?
First lets answer the following questions.
1)What type of materials do you plan to cut or engrave?
( Wood, Particle Board, Plastic, Foam, Composites, Glass, Aluminum )
2)What is the most complex design you foresee cutting?
The complexity of the design is another important considerations. What is meant by this is primarily the overall size and depth of cut per axis. Do you plan to use the machine for cutting, carving, drilling, or all of the above?
3)What kind of tolerances do you need to hold?
Now this is something that I am sure you have already considered but it is still worth discussing. A router is capable of leaving a near perfect finish while surfacing and overall the tolerances are good. A decent machine, you should expect a tolerance of .001" or better for a given distance.
3.Question: How to buy? whats the main procedure?
First, we come to a final conclusion with agreement. May this step will cost more than months even years.
Second, I prepare you the proforma invoice as we agreed.
Third, you bring the proforma invoce to the bank and do the advance payment transfer.
Fourth, after you showed me the bank slip, we factory start to produce your machine.
Fifth, machine finished within 13 working days, then we do the delivery and you finish the balance.
Sixth, You receive the machine in your port and pick it up to your workshop.
4. Question: What is the machine warranty? If any parts fault due to quality how can i do ?
Our machine are with one year qualtiy warranty. within 12 months, if any parts failed due to qualtiy, we will send you the replacement parts in no time and we provide 24 hours online technical support to you. Any time you meet any problem, just contact us.
