Stone Cnc Router / Marble Carving Machine / Granite Cnc Router Machine
- Qingdao
- T/T Credit Card PayPal
You May Like
-
2016 Jinan Missile 2025 Multi Head Stone Cnc Router Machine
-
Hot Sale 1325 Marble Stone Granite Carving Cnc Router Machine
-
High Accuracy Cnc Carving Marble Granite Stone Cnc Router Machine
-
Heavy Duty Stone Cnc Router 3d Cnc Stone Sculpture Machine
-
China Marble Granite 4x8 ft Stone Cnc Router Cutting Machine
-
Factory Price Heavy Duty Metal , Marble, Granite , Stone CNC Carving Machine
Product Details
| Condition | New | Type | Other, CNC Router, granite cnc machine | |
| Use | Marble | Production Capacity | 100% | |
| Place of Origin | Shandong, China | Brand Name | Missile | |
| Model Number | MS1325S | Voltage | AC380V/50Hz | |
| Power(W) | 5.5KW | Dimension(L*W*H) | 4200*2700*1800mm | |
| Weight | 1600kg | Certification | CE BV SGS | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

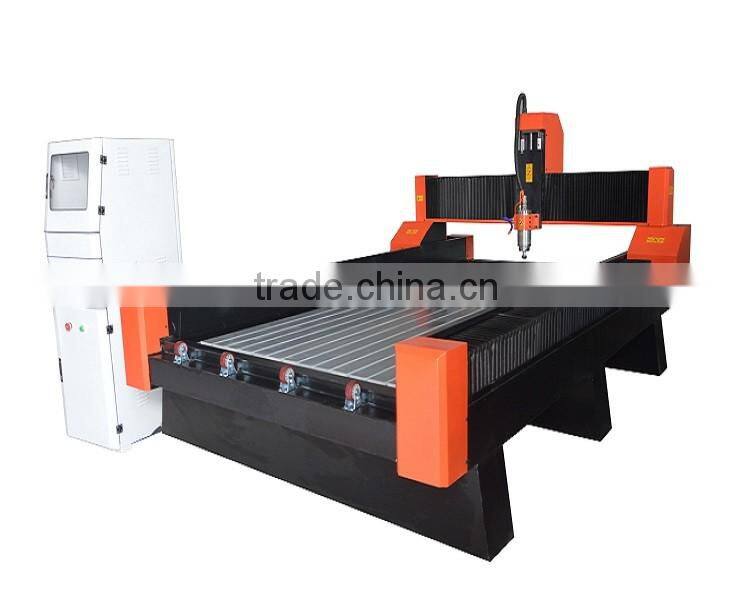

Stone cnc router / marble carving machine / granite cnc router machine
Features of granite cnc machine :
This model machine is specially designed for all type of stone cnc router.
Structure:Thick square pipe welded structures, which strengthen hole lathe bed stability.
Transmission: X and Y Axis HELICAL rack. Y Axis two sides driving, fast speed, powerful.
Drive ststem: Leadshine stepper drive with high-speed stepper motors. It is better for all kinds of stone.
Control system: Nc-studio system.
Optional: Air-cooling or water-cooling spindle, DSP handling control ststem, Servo motor, customized model.
Specifications of granite cnc machine :
Description | Parameter |
X,Y,Z Working Area | 1300x2500x250mm |
X,Y,Z Repositioning Accuracy | ±0.05mm |
Table Surface | T-slot Table |
Frame | Welded structure |
X, Y axis transmission | Rack and Pinion gear |
Z transmission | Ball Screw |
Rail Configuration | 20 square rail |
Max. Traveling Rate | 25000mm/min |
Max. Working Speed | 15000mm/min |
Spindle Power | Water cooling 5.5KW(Opitioinal 3.0/4.5/7.5kw) spindle |
Spindle Speed | 24000RPM |
Drive Motors | Stepper System (Opitional Yaskawa/ Panasonic Servo motors) |
Working Voltage | AC380V/50Hz/3PH |
Command Language | G Code |
Operating System | Ncstudio System (Opitional:DSP) |
Computer Interface | USB |
Software Compatibility | Type3,Ucancam,Artcut (Optional ) |
Packing Size | Wooden case |
N.W. | 1600Kg |
Applications of granite cnc machine :
Wall painting, marble, granite,tombstone ceramic tile etc. These stone letter and patten engraving and relief engraving. Also used for copper, aluminum cuttings.
