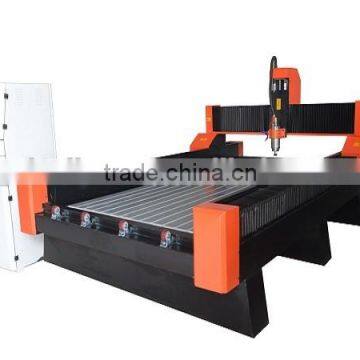

Jinan High Working Precision Marble Granite Stone CNC Carving Machine
- 200 Set / Sets per Month
- Qingdao Shanghai Ningbo etc
- Credit Card
You May Like
-
mytest Stone CNC Router
-
jinan missile 1325 3d engraver cnc router machine for granite
-
CE certificated stone cnc router cnc marble cutting machine
-
Best price 1325 marble engraving cnc router cnc stone machine
-
Hot selling 1325 multihead 3d stone carving cnc router machine
-
2016 New type stone cnc router cnc marble engraving machine
Product Details
| Condition | New | Type | CNC Router | |
| Use | Granite | Production Capacity | 100% | |
| Place of Origin | Shandong, China | Brand Name | Missile | |
| Model Number | 1325 | Voltage | AC380V/50Hz | |
| Power(W) | 5.5 kw Spindle | Dimension(L*W*H) | 1300*2500*300mm | |
| Weight | 1000kg | Certification | CE BV | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Jinan High Working Precision Marble Granite Stone CNC Carving Machine
1.The table is adopted with sink style structure, it can lengthen the feeding height by this way, to ensure the machine stability
2.Adopt Taiwan Linear guide rail. The bearing of the load guide rail is face to face, long time use precision is high.
3.Germany double nuts automatic ball screw.
4.High speed driver, high speed, high power.
5.No dust oiling structure, guarantee the long term running of the mechanical aspect.
6.Break point and break knife continue engraving function. It can engrave
at any place as you like.
7.The compatibility is high, CAD/CAM software such as Type3 /artcam/ castmate/Artcut.
8.High power frequency changing water cooled spindle can process hard materials efficiently.
Description | Parameter |
X,Y,Z Working Area | 1300x2500x250mm |
X,Y,Z Repositioning Accuracy | ±0.05mm |
Table Surface | T-slot Table |
Frame | Welded structure |
X, Y axis transmission | Rack and Pinion gear |
Z transmission | Ball Screw |
Rail Configuration | 20 square rail |
Max. Traveling Rate | 25000mm/min |
Max. Working Speed | 15000mm/min |
Spindle Power | Water cooling 5.5KW(Opitioinal 3.0/4.5/7.5kw) spindle |
Spindle Speed | 24000RPM |
Drive Motors | Stepper System (Optional Yaskawa/ Panasonic Servo motors) |
Working Voltage | AC380V/50Hz/3PH |
Command Language | G Code |
Operating System | Nc studio System (Optional:DSP) |
Computer Interface | USB |
Software Compatibility | Type3, UCANCAM |
Packing Size | Wooden case |
N.W. | 1000Kg |
Invites Agents from All Over the World !!
If you are not sure which machine is suitable, please tell me the followingquestions,
We will recommend the most suitable machine to you.
1) what materials do you want to engrave or cut?
2) what's the thickness of materials you want to engrave or cut?
3) what's the max. size of the materials? (Length*Width*Thickness)
WELCOME TO VISIT OUR FACTORY
JINAN MISSILE CNC EQUIPMENT CO.,LTD
Looking for Agents from All Over the World !!
Please contact me for more information
Contact: Sally Zhang
Skype: sallyzhang62
QQ : 958428436
Office phone:0086-531- 88785011
