Home > Products > Fans > SALZER PD200M-220 225X225X80mm AC Axial Fan With Metal Impeller

SALZER PD200M-220 225X225X80mm AC Axial Fan With Metal Impeller

FOB Price

Negotiable

1 (Min. Order)

Port Ningbo Shanghai Port

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Mounting	Other
Blade Material	Other, Plastic(UL94V-0 70%PBT+30%FRP)	Place of Origin	Zhejiang, China
Brand Name	SALZER	Model Number	PD200M-220
Voltage	110VAC, 220VAC, 380VAC	Power	64W, 80W,62W,75W
Air Volume	546CFM, 608CFM,540CFM,596CFM	Speed	2450RPM, 2550RPM,2700RPM,2800RPM
Certification	CE, Other, CE, TUV

Product Description

Specifications

Dimension: 225X225X80mm AC Axial Fan
Insulation grade: B
Material: Metal frame and Plastic blade
IP54

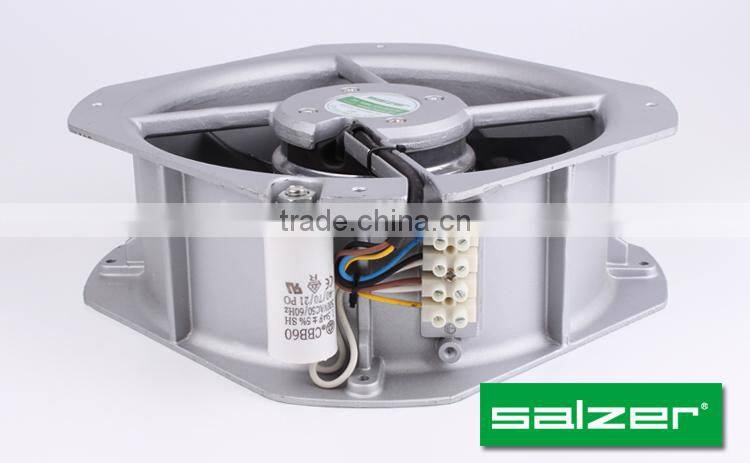

SALZER PD200M-220 225X225X80mm AC Axial Fan with Metal Impeller

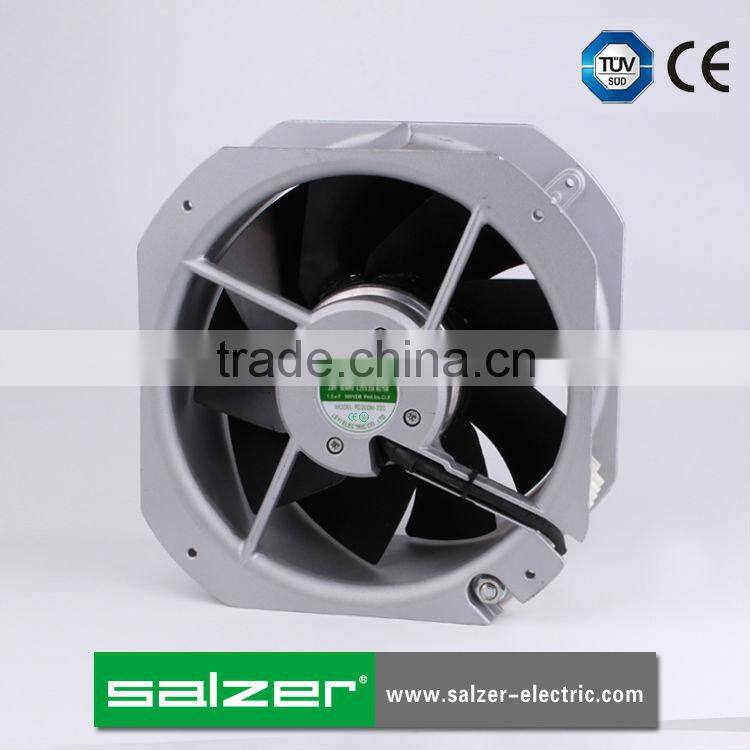

AC Axial Fan with Metal Impeller

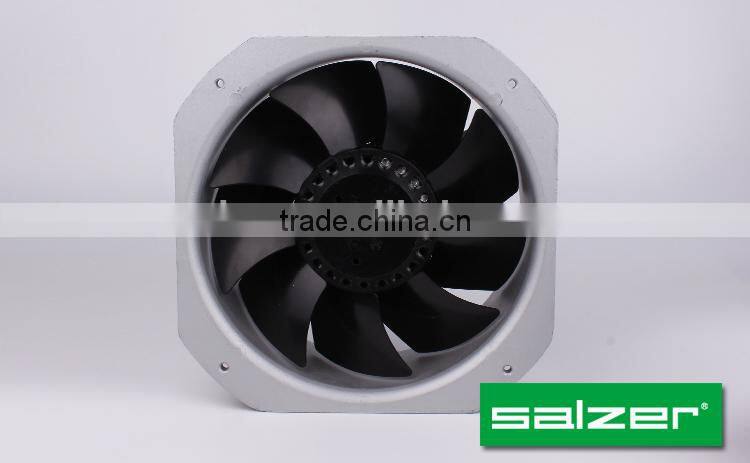

225X225X80mm AC Axial Fan with Metal Impeller

General Information
1) Motor: capacitor-run external rotor induction motor
2) Motor protection: thermal protect (standard speed); impedance protection (half/low speed)
3) Insulation resistance: 100MΩ or over with a DC 500V Megger
4) Insulation grade: B; protection grade: IP54
5) Dielectric withstanding voltage: AC 2500V, at 0.5mA, 50/60Hz
6) Allowable ambient temperature range: -20-+90°C(operating);-40- +90°C(storage)

Material
Casing: The casing of the AC axial fan is made of die-cast aluminium
Impeller: Sheet steel (Directly welded into motor and stove-enameled in gray)
Bearing: Ball bearing

Technical Parameters of AC Axial Fan with Metal Impeller

Dimension (mm)	Model	Vol- tage (AC)	Freq- uency (Hz)	Current (AMP)	Power (Watts)	Speed (PRM)	Air Flow (CFM)/ M³/h	Pres- sure (Pa)	Noise (dBA)	Weight (Gram)
225x225x80	PD200M-110	115	50	0.58	64	2550	546/925	230	66	2200
	PD200M-110	115	60	0.70	80	2800	608/1030	250	62	2200
	PD200M-220	230	50	0.29	62	2450	540/915	220	59	2200
	PD200M-220	230	60	0.33	75	2700	596/1010	240	61	2200

Outline drawing

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
