Home > Products > Fans > SALZER PD225M-220 Axial Fan Blower

SALZER PD225M-220 Axial Fan Blower

FOB Price

Negotiable

1 (Min. Order)

Port Ningbo Shanghai Port

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Mounting	Other
Blade Material	Stainless Steel	Place of Origin	Zhejiang, China
Brand Name	SALZER	Model Number	PD225M-110, PD225M-220
Voltage	110VAC, 220VAC	Power	64W, 80W,62W,75W
Air Volume	546CFM, 608CFM,540CFM,596CFM	Speed	2450RPM, 2550RPM,2700RPM,2800RPM
Certification	CE, Other, CE, TUV

Product Description

Specifications

axial fan blower
Insulation grade: B
Material: Metal frame and metal blade
IP54

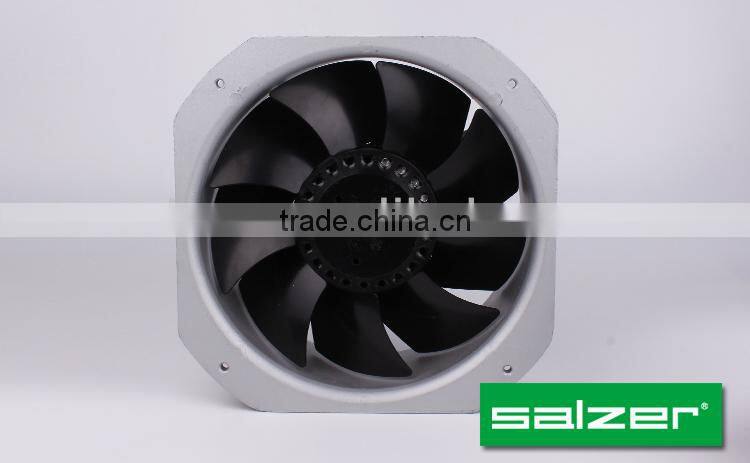

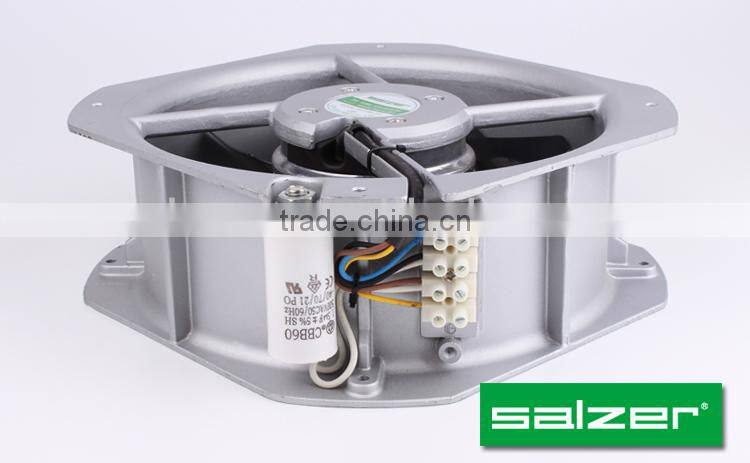

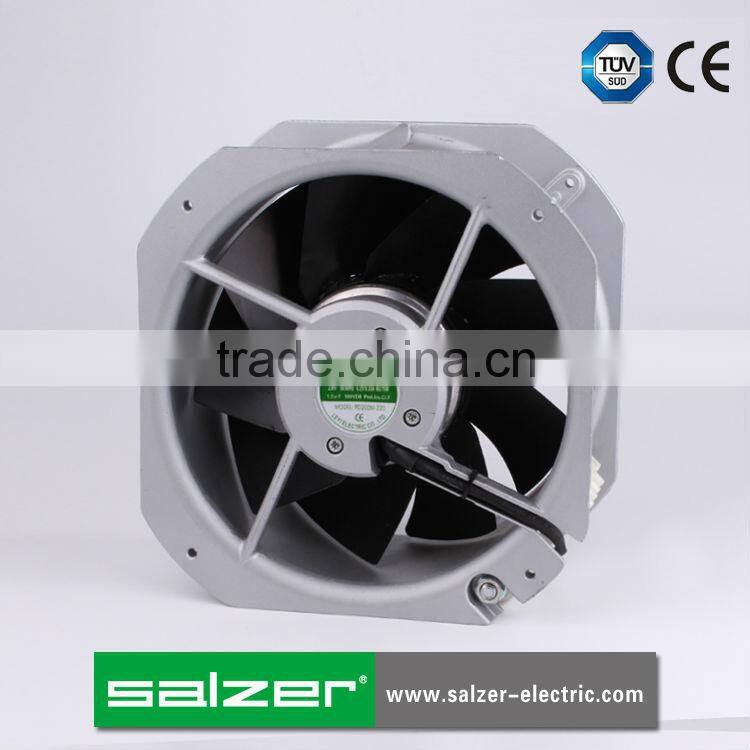

SALZER PD225M-220 axial fan blower

AC Axial Fan with Metal Impeller

225X225X80mm AC Axial Fan with Metal Impeller

General Information
1) Motor: capacitor-run external rotor induction motor
2) Motor protection: thermal protect (standard speed); impedance protection (half/low speed)
3) Insulation resistance: 100MΩ or over with a DC 500V Megger
4) Insulation grade: B; protection grade: IP54
5) Dielectric withstanding voltage: AC 2500V, at 0.5mA, 50/60Hz
6) Allowable ambient temperature range: -20-+90°C(operating);-40- +90°C(storage)

Material
Casing: The casing of the AC axial fan is made of die-cast aluminium
Impeller: Sheet steel (Directly welded into motor and stove-enameled in gray)
Bearing: Ball bearing

Technical Parameters of AC Axial Fan with Metal Impeller

Dimension (mm)	Model	Vol- tage (AC)	Freq- uency (Hz)	Current (AMP)	Power (Watts)	Speed (PRM)	Air Flow (CFM)/ M³/h	Pres- sure (Pa)	Noise (dBA)	Weight (Gram)
225x225x80	PD225M-110	115	50	0.58	64	2550	546/925	230	66	2200
	PD225M-110	115	60	0.70	80	2800	608/1030	250	62	2200
	PD225M-220	230	50	0.29	62	2450	540/915	220	59	2200
	PD225M-220	230	60	0.33	75	2700	596/1010	240	61	2200

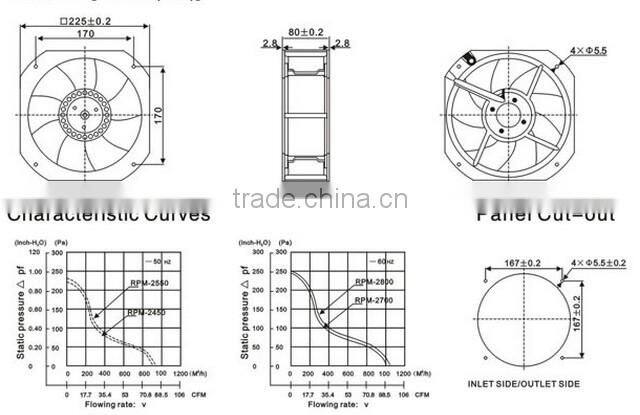

Outline drawing

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000

About us

Aug., 2002 YUEQING LEYI ELECTRIC CO., LTD. WAS FOUNDED.

Dec., 2002 Singed agent with our Thailand customer.

Jul., 2003 Got the UL certificate for our cam switch SA16.

Nov., 2003 Our expertise in the field has earned us membership in the China Chamber of.

Commerce for Import and Export of Machinery and Electronic Products (CCCME).

May, 2004 Cooperated with ALIBABA, becoming one of the first Chinese gold suppliers.

Oct., 2005 Singed agent with our Mexico customer.

Jan., 2006 Singed agent with our Indonesia customer.

Apr., 2006 Successfully registered our SALZER brand in China.

Jan., 2007 Got the UL certificate for our wire THHN/THWN.

Dec., 2007 Singed agent with our Turkey customer.

Sep., 2008 Got the UL certificate for our axial fan PD120B/S.

Jun., 2010 Singed agent with our Russia customer.

Aug., 2010 Singed agent with our Poland customer.

Oct., 2013 Got TUV, CE and CB certificates for our cam switch SA16, SA25 and SA32.

Jan., 2014 Singed agent with our Philippines customer.

Mar. 2014 Got TUV, CE and CB certificates for our cam switch SA40, SA63 and SA80.

May, 2014 Got TUV, CE and CB certificates for our pushbutton SA22 series and LED lamp PL16-22.

May, 2014 Got TUV, CE certificates for our axial fan PD Series.

More detail informations, please feel free to contact us!
