Home > Products > Fans > SALZER PD200B-220 300mm axial fan

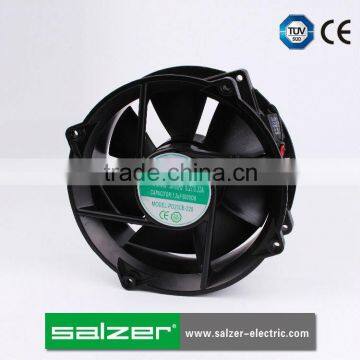

SALZER PD200B-220 300mm axial fan

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 20000 Piece / Pieces per Month
Port NINGBO SHANGHAI

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Electric Current Type	AC	Mounting	Other
Blade Material	Plastic	Place of Origin	Zhejiang, China
Brand Name	SALZER	Model Number	PD200B-220
Voltage	110VAC, 220VAC, 380VAC	Power	65W, 70W
Air Volume	285CFM	Speed	2300RPM~2500RPM
Certification	CE

Product Description

Specifications

300mm axial fan
Voltage: 110VAC or 220VAC or 380VAC
Material: Metal frame and Plastic blade
IP54

SALZER PD200B-220 300mm axial fan

Product Description

AC Axial Fan General Data

General Information

Electric motor: Shaded pole AC motor design
Frame: The outside frame of the AC axial fan is made of high quality aluminum alloy
Anticorrosive and moisture-proof impeller: UL94V-0, 70% PBT, +30% FRP
Bearing: ball bearing
Insulation: Class B
Insulation impedance: The case adds 500V DC to the coils, insulation impedance is more than 100MΩ
Dielectric strength: 0.5mA 1500V/AC min
Safety protection: Impedance protection
Operating temperature: -10 ~ +70°C
Storage temperature: -40 ~ +70°C

Ordering Information

200X200X61mm AC Axial Fan

Dimension (mm)	Model	Voltage (VAC)	Current (AMP)	Speed (RPM)	Air Flow (CFM)	Pressure (Inch/H₂O)	Noise (dBA)	Weight (Gram)
Φ230x65	PD200B-110	115	0.80	2300	254	0.58	56	1690
	PD200B-220	230	0.48	2500	285	0.65	60	1690
	PD200B-380	380	0.28	2500	285	0.65	60	1690

Outline drawing

We at Salzer back up our products with a 12 or 13-month warranty, during which substandard products are replaced free of charge. In addition, we can offer customize products according to customers' sample, drawings or other requirements. Free product samples (less than USD30) and wearing parts are also available, upon request. As a result, customers can feel secure in purchasing our axial fan, fan filter, cam switch, isolator switch, push button switch and LED indicator.

Mini order amount USD5,000
