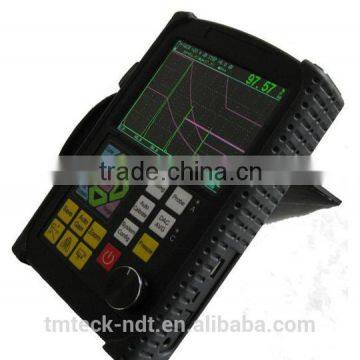

Ultrasonic Flaw Detector TFD800C

USB memory knob digital ultrasonic flaw detector TFD800C mini total 1kg with battery

Simple operation with fast rotary knob adjustments

use in direct sunlight and operation at extreme temperatures…

Product Info :

Automated calibration Automated gain ·Automated make video of test process and play

·AWS D1.1,DAC (6dBDAC), AVG, TCG & B scan,28 DGS curves

Pulse can be adjusted by customer

High-speed capture and very low noise

·Solid metal housing (IP65), rubber plastic dust cover included

·High contrast viewing of the waveform from bright ·Powerful pc software and reports can be export to excel

Small size, light weigh model, total 1kg with battery

Knob design, fast operation

USB memory stick for no limit data transmission

Features :

• ·            Automated calibration of transducer, angle, Zero point and Velocity

• ·            Automated gain,Peak Hold and Peak Memory

• ·            Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,);

·         Automated switch three staff gauge ((Depth d,level p,distance s)

• ·            100 independence setup, any criterion can be input freely, we can work in the scene without test block
  • ·            Big memory of 1000 A graph

• ·            RS232/USB 2.0 port,communication with pc is easy

• ·            The embeded software can be online updated

• ·            Li battery, continue working time up to 10 hours

Other assistant function

• ·            Display freeze

• ·            Automated echo degree

• ·            Angles and K-value

• ·            Lock and unlock function of system parameters

• ·            Dormancy and screen savers

• ·            Electronic clock calendar

• ·            Two gates setting and alarm indication

• ·            High-speed capture and very low noise

• ·            Automated make video of test process and play, USB memory disk,no limit for video

time.

Main Technical Index:
