Functional Type Unified Fixed Ultrasonic Flow meter TUF-2000P
- 20 Unit / Units per Month
- Beijing Chain
You May Like
Product Details
Place of Origin | Beijing, China | Brand Name | TMTECK | |
Model Number | TUF-2000M |
Product Description

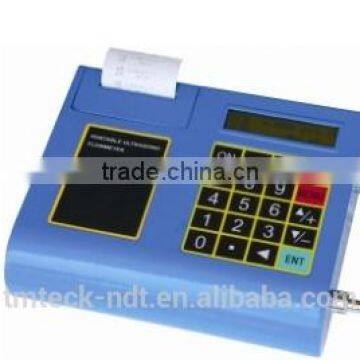

Portable Ultrasonic Flow meter TUF-2000P
[ Feature ]
High Accuracy measuring
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
Non-intrusive measuring
Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
Wide measuring range
Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
Chinese & English menu
Chinese & English display, easy to operate.
Built-in printer
Built-in mini thermal printer with instant and timing print function
Built-in data logger
Uplink over 20 measuring data to computer or SD card, convenient for the data processing and applications
Multi-signal input &output
Multiple signal interface easy for input and output signals
[ Main Feature ]
Items | Specifications |
Main unit | 2 line x 20 character LCD with backlight Working temperature: -25--60℃ Mini thermal printer with 24 line character output 4x4+2 pushbutton keypad RS-485 interface for networking |
Signal input & output | 1 channel 4-20mA output 1channel OCT output 1channel relay output 3 channel 4-20mA input |
Medium | Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals (alcohol, acids, etc.); Plant effluent; Beverage, liquid food; Ultra-pure liquids; Solvents and other liquids |
Flowrate Range | 0~±30m/s |
Accuracy | Better than ±1% |
Battery | Built-in rechargeable Ni-MH rechargeable battery, provide over 20 hours of continuous operation |
Power Consumption | 1.5W |
Power supply | Built-in rechargeable Ni-MH battery (for 20 hours operation) or AC 220V |
Weight & Dimensions | 2.5kg ; 225*180*67mm: |
Remarks | With a high strength carrying case suitable for normal and harsh environment |
