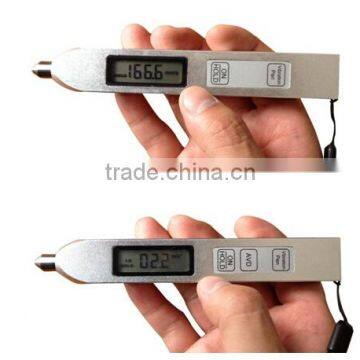

Model TMV210 Portable Vibration Meter

FOB Price

USD $180 - $900 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Beijing, China		Brand Name	TMTECK
Model Number	TMV210, TMV210

Features:

·Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.

·Compact size, small weight, easy handling

·Prompt testing of vibration on the workshop machines

·For quick checking of unbalance misalignment, bearings and gears

·Guard against mechanical malfunction

·Holding tested value for 40 seconds

·Automatic switch off after 40 seconds

·TMV210 is used specially for velocity testing

·TMV280 is used for acceleration, velocity and displacement testing

Technical Specifications:

Model	TMV210	TMV280
Parameter	RMS of vibration velocity (mm/s)	Acceleration, Velocity, Displacement
Testing range	Velocity: 0.1mm/s~ 199.9mm/s	Acceleration:0.1m/s²-199.9m/s²(peak) Velocity: 0.1mm/s-199.9 mm/s(RMS) Displacement: 0.001mm-1.999 mm (peak-peak)
Frequency range	Velocity:10Hz ~ 1kHz	Acceleration: 10Hz ~ 1kHz(LO) 1kHz ~ 15kHz(HI) Velocity: 10Hz ~ 1kHz Displacement: 10Hz ~ 500Hz
Accuracy	±5% ± 2digits
Display	3 1/2 digits LCD
Power supply	two button batteries(LR44 or SR44)
Battery capacity	Approx. 5 hours working continuously
Operating temperature	0℃ ~ 40℃
Humidity	<85%
Dimension	150mm×22mm×16mm

Configuration:
