Portable Car Paint Wide Measuring Range Coating Thickness Gauge

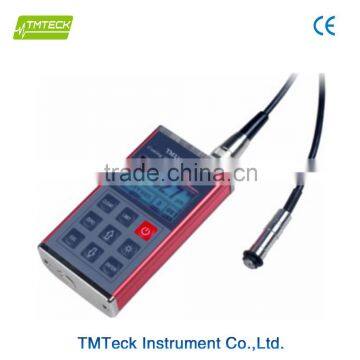

TM510FN Coating thickness gauge

2 Measuring modes: continuous/single 2 Shutdown modes: manual/automatic

Wide measuring range with 5 probes available (next page) Direct testing mode and block statistics mode (APPL/BATCH) Can connect with printer to out of statistical values Dataview to connect with PC with USB 2.0 port

500 datas can be stored

Main features

Can use various probe (F400, F1, F1/90 °, F10, N1, N400, etc.) measurement;

Three calibration methods: one point calibration, two point calibration, the basic calibration;

Display resolution: 0.1 µ m (measuring range of less than 100 µ m) 1µ m (range greater than 100 µ m)

Have five statistics, data storage 500

There are two working methods: direct ways and means of group

There are two measurements: continuous measurement and a single measurement There are two shutdown: manual and automatic shutdown shutdown

Can be set Bound: The gauge of the measured value can be automatic alarm and a number of measurements available on the histogram value analysis;

Deleted features: the gross error and error settings can be deleted; Printing: Print Measurement measurement, statistics, gauges, histogram A music tone in the operation carried out at any time tips

A power supply under-voltage direct function An error function

And printers, computer communications (communications software operating environment for the Window operating system) connectivity.

Technical specifications

Optional accessories

5 probes for different applications Calibration foils in various thickness
