Specifications

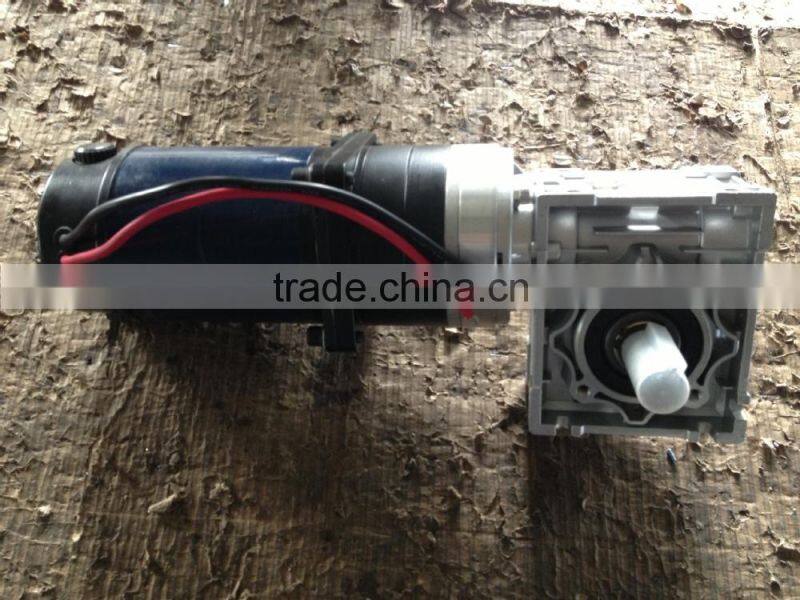

 High precision 12V DC Motors,worm gear motor dc 12v

Product pictures:

Decription:

ZYT Series PM DC Motor
Summery
ZYT Series PM DC Motor is used with Ferrite PM Magnet, closure and self-cooling. It is used for driven element in any equipment system.
Model Explanation
90 ZYT08 /H1
1.90 indicates motor frame number; the frame number is indicated with 55, 70, and 90,110,130,its corresponds with frame Dia. 55, 70, 90,110,130mm
2.ZYZ indcates PM DC Motor.
3.08 indicates the lamination length No,.01-49 refers to short lamination types, 51-99 refers to long lamination types and 101-149 refers to special long lamination types.
4.H1 refers to derivative structure , its No, is indicated with H1,H2,H3…(Each frame No, is arranged on custemor ‘s requirement in order.)
3.Mounting Model
1.Housing Mounting: A5(single shaft extension),AA5(double shaft extension) and frame No,(55-130).
2.Flange Mounting:A3(single shaft extension),AA3(double shaft extension) and frame No,(55-130).
3.Foot Mounting: A1(single shaft extension),AA1(double shaft extension) and frame No,(90-130).
4.Usage
1.No more than 4000m above sea level.
2.Ambient temperature:-25degree~40 degree.
3.Relative humidity ≤95%(at +25 degree).
4.The followed temperature rise: no more than 75K(when 1000m above sea level).
5.Technical Data
The following data changes within range depending on exact model,customer can refer to them when making selection.

A NRV050-VS-50 B8

   Reducer model 050, with input shaft and worm extensional shaft, ratio 50, mounting position B8.

B NMRV075-F1-20-Y-1.KW B3

   Reducer model 075, motor power 1.5kw, with F1 output flange, transmission ratio 20, mouting position B8.

C NMRV110-AS-25-Y2.2KW B6

   Reducer model 110, motor power 2.2KW, with additional single output shaft output shaft, transmission  ratio 25, mounting position B6.

Package

Company introduce

Work Shop:

Process Of An Order:

1. Please check product detailed information above.

A. Model/Size   B. Transmission Ratio   C. Shaft Direction  D. Order Quantity.

2. Our Export Service Team will contact you with a quotation file within 3 hours after our team get your enquiry.

3. When you place an order, our team will confirm with you about color, package,method of payment and delivery,

    then a sales contract will be sent to you to confirm.

4. Packing: Carton and Wooden Case.

5. How to delivery:

    By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.

    By air - Buyer offer collect express account, or our sales team find suitable  express for buyers. (Mostly for sample)

    Others - We arrange to delivery goods to some place in China appoint by buyers.

Welcome To Visit Our Factory - Located in the tourism city - Hangzhou -West Lake.
