High frequency online ups
- SHENZHEN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HKSANTEK | |
| Model Number | Castle Series | Phase | Single Phase | |
| Protection | Other, Short circuit, over current, over voltage, over loads | Weight | 40KGS | |
| Output Voltage | 110/220VAC | Type | On-line | |
| Application | Other, Computer, military, medical, security, telecommunications |
Product Description
Specifications
Online UPS (6KVA~20KVA/S)Servers, Data centers, Critical network devices, Sensitive electronic equipment, Telecom...

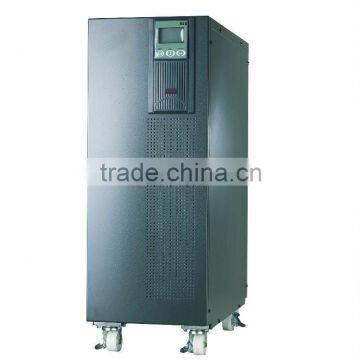

Castle Series C Online UPS (6KVA~20KVA/S)
Key Features
- True online double conversion technology
- Wide input voltage range
- Zero transfer time
- Protection against all types of power problems
- No add-on CNTL unit required for parallel connection
- Low initial investment and flexible for future expansion
- Highest reliability and maximum performance for power sharing and redundancy
- Equipped with Maintenance Bypass Switch
- Smart RS232 and Intelligent slot interface
- Sealed lead-acid, maintenance free battery
Model | C6K/6KS | C10K/10KS | |
Rated Power | VA/W | 6kVA/4.2kW | 10kVA/7kW |
Input | Nominal Voltage | 110VAC/220VAC | |
Voltage Range | 80-144VAC/120-276VAC | ||
Power Factor | 0.98 | ||
Connection | Hardwired | ||
Output | Voltage | 110VAC/220VAC ±1% | |
Frequency | 60HZ/50Hz ± 0.2Hz (Line mode) | ||
Waveform | Sine Wave | ||
Power factor | 0.7 | ||
Voltage Distortion | 2% under linear load | ||
Overload Capability | 105% ~ 130% for 10 min., ³130% for 1 min. | ||
Current Crest Ratio | 3:1 max. | ||
Battery | Type | Sealed, Maintenance free, Lead-Acid | |
Back-up time (full load) | 5 min | 7 min | |
Recharge time | 8 hrs to 90% of capacity after full load discharge | ||
Transfer time | 0 ms | ||
Maintenance Bypass Switch | Yes | ||
LED/LCD indicators | Status | Load level/Battery level, Battery , Utility power, Inverter, Bypass, Overload, Fault | |
Audible alarm | Bypass | Alarm beeps every two minutes | |
Battery discharge | Alarm beeps every four seconds, every second if battery low | ||
Overload | Alarm beeps two for every second | ||
Fault | Alarm beeps continuously | ||
Acoustic noise | At 1 meter distance | £ 55 dBA | |
Communications | DB-9 Port | RS232 serial interface | |
Intelligent Slot | Options: WebPower, AS400 or WinPower CMC | ||
Environmental | Operating temperature | 0 ~ 40°C | |
Operating humidity | 20% ~ 90% non-condensing | ||
Weight | Net (kg) | 90 | 93 |
Dimensions | W x D x H (mm) | 260*570*717 | |
