DC AC INVERTER WITH CHARGER
- SHENZHEN
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | HKSANTEK | |
| Model Number | PSW7 | Output Power | 1 - 200KW | |
| Output Type | Single | Size | 442*218*179MM | |
| Weight | 30KGS | Input Voltage | 110/220VAC | |
| Output Voltage | 110/220VAC | Type | DC/AC Inverters | |
| Output Frequency | 60/50HZ | Output Current | 35-70AMP |
Product Description
Specifications

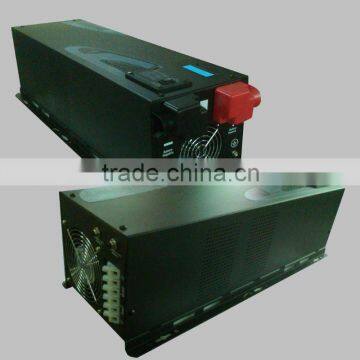

DC AC INVERTER WITH CHARGER1.1000W~6000W
2.built in charger & transformer
3.Up to 70 Amp charge current
NEW DC AC INVERTER WITH CHARGER 1000W~6000W is suitable to use in family, and under special enviorment, the equipment can connect to perceptual load. Stability of this equipment is good, the charging current is big and the charge rate is also very high. The output wave for this equipemt is sine wave
Features :
- LED LCD Display
- Buzzer Alarm
- Over-Load Protection
- Over-Voltage Protection
- Low-Voltage Protection
- Over-Temperature Protection
- Short-circuit protection
MODEL
| 1000w | 2000w | 3000w | 4000W | 5000w | 6000w | |
Input Voltage Waveform | Sinusoidal (utility or generator) | ||||||
Nominal Input Voltage | 230Vac | ||||||
Low Line Disconnect | 184Vac±4% | ||||||
High Line Disconnect | 253Vac±4% | ||||||
Max AC Input Voltage | 270Vrms | ||||||
Nominal Input Frequency | 50Hz/ 60Hz (Auto detection) | ||||||
Over-Load Protection (SMPS load) | Circuit breaker | ||||||
Output Short Circuit Protection | Circuit breaker | ||||||
Efficiency (Line Mode) | >95% | ||||||
Transfer Switch Rating | 30A | ||||||
Transfer Time (Ac to Dc) | 20ms (typical) | ||||||
Output Voltage Waveform | Sine wave | ||||||
Rated Output Power (W) | 3000W | ||||||
Power Factor | 0~1.0 | ||||||
Nominal Output Voltage (V) | 230Vac | ||||||
Output Voltage Regulation | ±10% rms | ||||||
Nominal Efficiency | >80% | ||||||
Nominal DC Input Voltage | 12V | 12V | 12V | 24V | 24V | 24V | |
Nominal Charge Current | 70A | 70A | 70A | 35A | 35A | 35A | |
Charge Current Regulation | ± 5Adc | ||||||
Battery initial voltage | 0 –15.7 Vdc (can operate with 0V battery) | ||||||
Communication: | RJ11 (Used for factory testing. No customer interface available) | ||||||
Safety Certification | Compliance with UL458 | CE(EN60950) | |||||
EMI Classification | FCC, CLASS A | EN50091-2, CLASS A | |||||
Operating Temperature Range | 0°C to 40°C | ||||||
Storage temperature | -15ºC ~ 60ºC | ||||||
Operation humidity | 5% to 95% | ||||||
Audible Noise | 60dB max | ||||||
Cooling | Forced air, variable speed fan | ||||||
