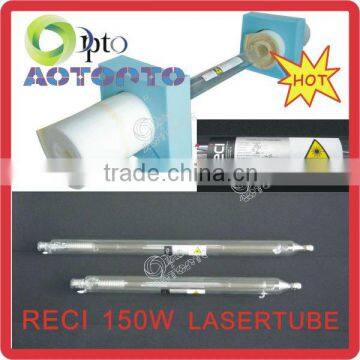

2016 Newest 150W reci laser tube for laser machine

 RECI CO2 Laser Tube

1. Installation requirements

Installed in strict accordance with the S2 type diagram. With a dedicated power supply DY10 type, the anode with high pressure, the fai 19 KY voltage.

Failure to install lead to adverse consequences: lighter. Tube breakdown is leaking.

2. The operating conditions

1. Water cooling: cooling fluid for pure water, flow rate of 2-5 liters per minute, the standard temperature 10 ℃, 40 ℃.

2. Using the environment: temperature 2-40 ℃, humidity is 10-60%.

3. Working current:Detect current 29 mA, allowing maximum working current should be controlled in 29 mA and the following, long-term working current must control in 27 mA and the following. When using current under 25 mA and life can reach 8000 hours. Above the current requirements must be on the basis of the actual current online ammeter in series at the cathode.

4. Failure to use lead to adverse consequences: long-term super current negative electrode can appear when using light yellow, at the same time greatly shorten service life.

5. To prevent dust into the high pressure sheath near electrode, please after high pressure sheath around on the set of plastic wrap.

3. The working performance

Cutting function

Engraving function. Carving performance has a very good, you can use the 4 ma current in the laser tube high frequency pulse predomination conditions sculpture.

4. The matters needing attention

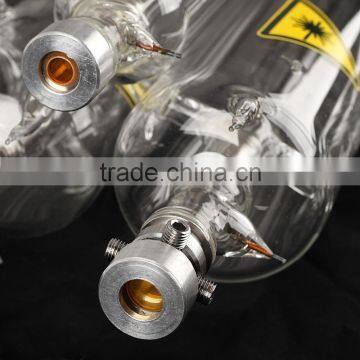

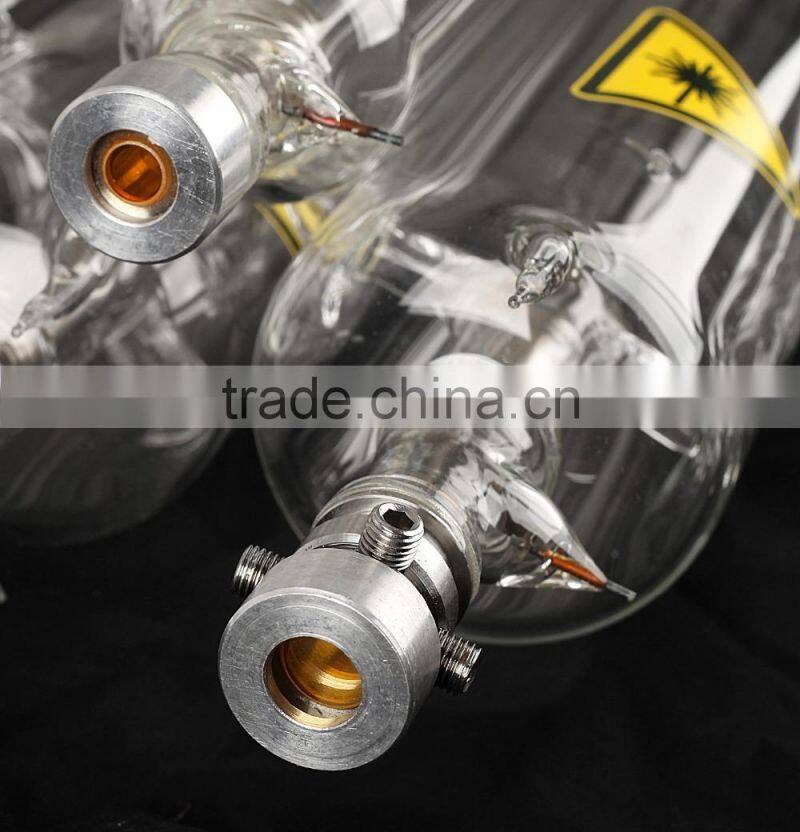

The external surface of the output mirror window cannot use any tools such as cotton swab, otherwise will seriously affect the power. Specify the removal methods of outside window lens surface contamination:

1) When the lens pollution, don't drive laser;

2) Oblique blow by balloon lens surface;

3) Use the cylinder compression analysis of pure alcohol spray lens surface;

4) Such as alcohol volatile open again after laser;

5) Such as cleaning methods have no significant effect, a professional must stick with tampon alcohol by scrubbing rotating mirror outside introversion. The best way to protect the window to avoid pollution.

Special reminder: can't use acetone scrubbing the lens.

Fastener screw can't move on both ends of the laser tube, otherwise directly led to the decrease of the laser power, scrap. When the test spot on the organic glass, 300 mm away from the mirror.

5. Security

The laser output is visible light, must wear protective goggles when debugging, the anode with high pressure. Pay attention to safety.

6. Storage and transportation requirements

Storage or transportation must be as coolant, dustproof plastic nozzle trapping output end, 2 - storage environment temperature 40 ℃, humidity is 10-60%, and according to the factory of the packing way. Packing important: be sure to use adhesive tape to stick sponge and laser tube in mind, to prevent the laser tube longitudinal sliding when transportation. Output mirror a sponge packing should be highlighted 70 millimeters, a head to highlight all mirror, 50 mm.

7. Not according to instructions of the operation is not enjoy quality commitment.

After-Sales Service & Warranty

1. We provide one year free warranty beyond which we charge only accessory fee and cost;

2. Warranties on laser tubes differentiate due to brands diversities. Contact us to get exact warranty period on your purchase;

1,  Get warranty extension with preferential price;

2,  Free lifetime remote technique-service via telephone, email, online video, Skype, QQ etc.;

3,  Free lifetime training and guidance in our factory;

4,  Get operating software CD, U Disc for free;

The following circumstances are exclusive

1,  Natural aging of consumables and other parts;

2,  Man-made damage due to maloperation against the operation manual;

3,  Malfunction and damage caused by repair, transform without permission;

4,  Damage caused by fire, flood, voltage anomaly and other force majeure;

5,  Other non-product quality damage.

Why choose Aotopto?

About us - Dongguan Aotopto Technology Co., Ltd

AOTOPTO Technology Co., Ltd. is a professional manufacture focusing on providing solutions for medium and low power laser processing users. We combine R&D, produce and sales in vertical integration in laser value chain.

Based on the quality control system, the whole series of regular types has been certificated by European CE certification.

We promise we will provide products of better quality and our best service!

Exhibition in whole world
We have participated in many international exhibitions:

D.PES SIGN EXPO CHINA (GUANGZHOU)

International Textile &Clothing Industry Fair (DOGNGUAN),

International Footwear&MaterialIndustry Fair (DOGNGUAN),

International Advertising & Exhibition (Shanghai)

Munich Exposition in Germany, etc.
If you are distributor, Aotopto laserhopes to cooperate with you and participate in your local fair to help you to open and occupy the market.

Certification of Aotopto Machine (CE,FDA)
Aotopto laser machine have passed testing and comply with the international standard. With CE, our machines own a good market in Europe. There is no problem to export machine to America with FDA.

If you want import machine to Egypt or some countries with strict regulation, we can provide fumigation certificate.

Q: How to choose among different models?

A: AZ/AZ-D Series: Sliding rail config. are mainly used for textile industry like fabric,textile,paper with faster speed

AZ-L Series: Square rail config.are mainly used for advertisement with higher precision for thick materials like acrylic, wood.

AZ-U Series: Up&down or rotary device is equipped for thick or cylindrical object on the base of standard series

AZ-H Series: Upgraded from D/L series, it’s equipped with square rail but larger working area

AZ-FH Series: On the base of AZ/AZ-D or H series, it’s suitable for both metal and non-metal.

Q: How about the package?

A: The machine will be wrapped with waterproof film and foam. We use strong seaworthy wooden box with fumigation to guaranty safe delivery.

Q: How about the delivery?

A: We have enough machines in stock. Exact delivery date is confirmed by actual order.

Q: Are you a factory or a trade company?
A: Yes, We are a factory.

Q: Where is your factory located? How can I visit there?
A: Our factory is located in Dongguan city, Guangdong province, China.

All our clients from home or abroad are warmly welcome to visit us!

Q: Do you have any certificates?

A: All series of machines have passed CE verification.

Q: What is the trade term?

A: FOB/CNF/CFR/CIF/EXW are favorable.

Q: What is the payment term?

A: We take 30% deposit and 70% balance should be paid before delivery by T/T.

West Union and PayPal are preferred for small amount.

Q: How can I get the documents after shipment?

A: All original documents will be sent to the client by DHL after shipping, including packing list, commercial invoice, B/L, and other certificates as required.

Q: Do you arrange shipment for the machines?

A: We will arrange shipment for transactions based on FOB/CIF terms.

For EXW price, shipment should be made by clients or their agents.

Any other questions will be replied as we receive your consult.
