AZ-Reci laser tube 40W 60W 80W 100W for co2 laser cutting & engraving machine

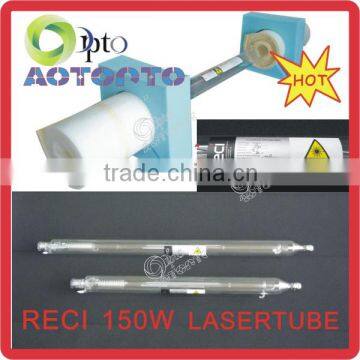

 CO2  Reci Laser Tube

1. Installation requirements

Installed in strict accordance with the S2 type diagram. With a dedicated power supply DY10 type, the anode with high pressure, the fai 19 KY voltage.

Failure to install lead to adverse consequences: lighter. Tube breakdown is leaking.

2. The operating conditions

1. Water cooling: cooling fluid for pure water, flow rate of 2-5 liters per minute, the standard temperature 10 ℃, 40 ℃.

2. Using the environment: temperature 2-40 ℃, humidity is 10-60%.

3. Working current:Detect current 29 mA, allowing maximum working current should be controlled in 29 mA and the following, long-term working current must control in 27 mA and the following. When using current under 25 mA and life can reach 8000 hours. Above the current requirements must be on the basis of the actual current online ammeter in series at the cathode.

4. Failure to use lead to adverse consequences: long-term super current negative electrode can appear when using light yellow, at the same time greatly shorten service life.

5. To prevent dust into the high pressure sheath near electrode, please after high pressure sheath around on the set of plastic wrap.

3. The working performance

Cutting function

Engraving function. Carving performance has a very good, you can use the 4 ma current in the laser tube high frequency pulse predomination conditions sculpture.

4. The matters needing attention

The external surface of the output mirror window cannot use any tools such as cotton swab, otherwise will seriously affect the power. Specify the removal methods of outside window lens surface contamination:

1) When the lens pollution, don't drive laser;

2) Oblique blow by balloon lens surface;

3) Use the cylinder compression analysis of pure alcohol spray lens surface;

4) Such as alcohol volatile open again after laser;

5) Such as cleaning methods have no significant effect, a professional must stick with tampon alcohol by scrubbing rotating mirror outside introversion. The best way to protect the window to avoid pollution.

Special reminder: can't use acetone scrubbing the lens.

Fastener screw can't move on both ends of the laser tube, otherwise directly led to the decrease of the laser power, scrap. When the test spot on the organic glass, 300 mm away from the mirror.

5. Security

The laser output is visible light, must wear protective goggles when debugging, the anode with high pressure. Pay attention to safety.

6. Storage and transportation requirements

Storage or transportation must be as coolant, dustproof plastic nozzle trapping output end, 2 - storage environment temperature 40 ℃, humidity is 10-60%, and according to the factory of the packing way. Packing important: be sure to use adhesive tape to stick sponge and laser tube in mind, to prevent the laser tube longitudinal sliding when transportation. Output mirror a sponge packing should be highlighted 70 millimeters, a head to highlight all mirror, 50 mm.

7. Not according to instructions of the operation is not enjoy quality commitment.
