UL Global Approvals Windows Control Waterproof Car Micro Switch
- Shenzhen & HK
- Credit Card
You May Like
-
Waterproof Micro Switch Micro Switch 25t85 Kids Cars Micro Switch
-
Snap Action Push Button Micro Switch
-
Waterproof Micro Switch Limit Switch With Lever and Right Side Balck Grey Wire Leads Microswitch
-
Automotive Button Switch Electrical Switches Types Kw3a Microswitch
-
On off Switch Universal Tiny Switch Single Waterproof Micro Switch
-
Zing Ear 40t85 5e4 Limit Switch 250v Electric Limit Switch& Micro Switch Microswitch
Product Details
| Place of Origin | Guangdong, China | Brand Name | Zing Ear | |
| Protection Level | IP67 | Max. Current | 15A | |
| Max. Voltage | 380V |
Product Description

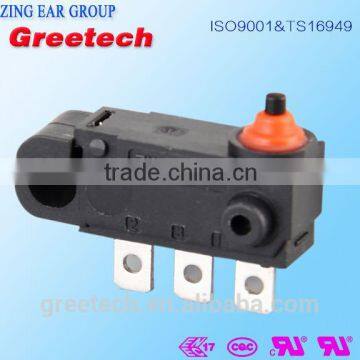

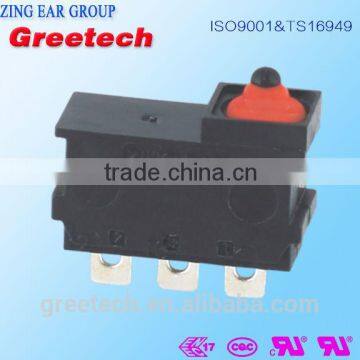

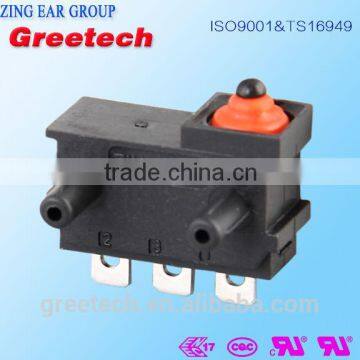

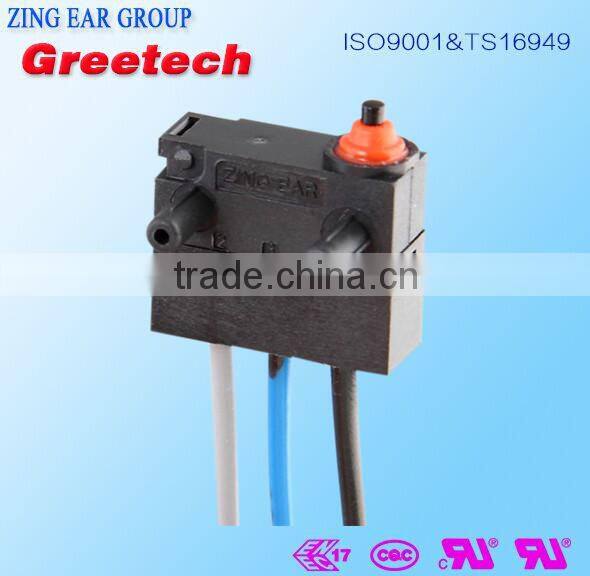

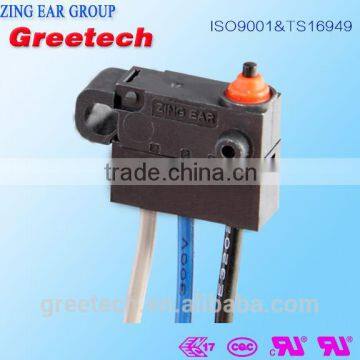

UL global approvals windows control waterproof car micro switch
Features
-Small compact size
-Global safety approvals
-Long life and high reliability
-Variety of actuator and terminals
-High rating to 10(2)A,1/4Hp
-Customized designs
-Widely used in auto control ,applicance control ,industrial control etc.

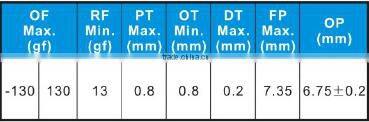

Parameters
| Rating | 0.1A /125VAC; 3A/ 12VDC ; 0.1A /250VAC; 0.1A/ 48VDC u 1E5. | |
| Operating Frequency | Electrical | 0.1A-120/3A-10~30 cycles/minute |
| Mechanical | 120 cycles/minute | |
| Contact Resistance(Initiative) | 100mΩ Max | |
| Insulation Resistance(at 500VDC) | 100MΩ Min | |
| Vibration durability | 10~55Hz, move 0.75mm(p-p) | |
| Dielectric Strength | 500VAC (50~60Hz) | |
| Storage Temperature | -40℃-+85℃ | |
| Storage Humidity | 85% RH Max | |
| Service Life | Electrical | 6,000~500,000/cycles(Depend on part number) |
| Mechanical | Min.500,000/cycles | |
No. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
Inner box size(mm) | Q'ty/(pcs) | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ (pcs) | L/T (Days) | Total GW(kgs) | ||
1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9.0 |
3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12.0 | 6,000 | 15 | 12.0 |
9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |


Certificates
