Home > Products > Micro Switch > New Waterproof IP65 Micro Switch
New Waterproof IP65 Micro Switch
- Guangzhou Shenzhen & HK
- Credit Card
You May Like
-
3 Position Silde Switch 120 Volt Push Button Wireless Micro Switch
-
Good Quality Waterproof Micro Switch 12v UL VDE CSA CE ROHS 184 KLS
-
Zing Ear Mini Pushbutton With 12v Float Timer Micro Switch
-
Subminiature Momentary Motorcycle on off Pcb Mount Range Hood Types of Electrical Micro Switches
-
Touch Momentary Motorcycle 0.1A 125V 250V Push Button on off Type of Electric Micro Switch
-
3 Position Micro Switch With Roller Lever 10a 16a 21a Tuv Ul Vde Ce Cb Kc
Product Details
| Place of Origin | Guangdong, China | Brand Name | ZING EAR | |
| Model Number | G9 micro switch, G9 | Max. Current | 5A | |
| Max. Voltage | 250VAC | Operating Temperature | -25℃~125℃, -25℃~125℃ | |
| Protection Level | IP40 IP67 |
Product Description

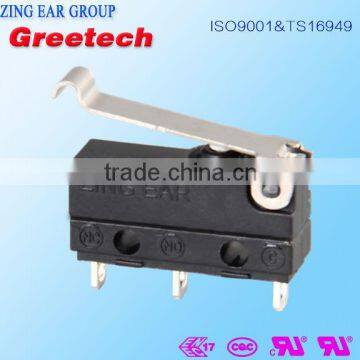

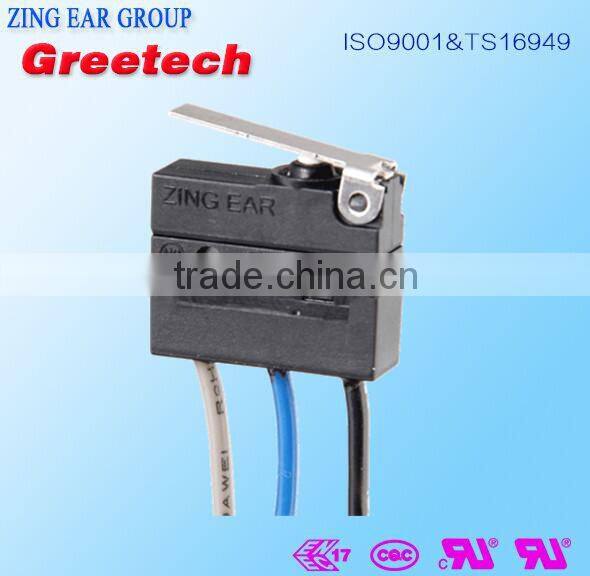

New Waterproof IP65 Micro Switch
Feature:
-Tight Configuration,Small Contact Gap , Snap Action
-Long Life, High Reliability
-Global Safety Approvals
-Variety of Terminals
-Wide Range Operating Force
-Wide Range Temperature Grade
-With Optional PTI Grade
-Variety Used in Home Applicances, Electronic Equipments, Automatic Machines,
Communication Equipments.
-Variety of Levers

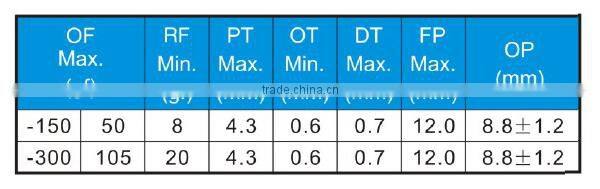

Parameters:
| Rating | p1 | 0.1A 125/250VAC 48VDC/Glod Plated Contact Optional |
| 05 | UL:5A 125/250VAC ENEC:6A 125/250 1E4;3A 125/250VAC 30VDC 5E4 µ25T120 | |
| Operating Frequency | Electrical | 10~30cycles/minute |
| Mechancial | 120cycles/minute | |
| Contact Resistance(Initiative) | 100mΩMax/It depends on the wire length for the type with wire | |
| Insulation Resistance (at 500VDC) | 100M Ω Min | |
| Dielectric Strength | AC1,000V RMS (50~60Hz) | |
| Storage Temperature | -25°C~+120°C | |
| Storage Humidity | 85%RH Max | |
| Service Life | Electrical | 10,000cycles/Depend on part No. |
| Mechanical | 500,000cycles | |
More about packaging details:
No. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
Inner box size(mm) | Q'ty/(pcs) | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ (pcs) | L/T (Days) | Total GW(kgs) | ||
1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9.0 |
3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12.0 | 6,000 | 15 | 12.0 |
9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
shipping:
Greetech Advantages:
1. ISO9001 & TS16949 qualified
2. Most products are produced & tested by automatics
3. Automatic machines are designed and assembled by our own team
4. Awarded as National Innovative Technology Company
5. Strong R&D team, authorized over 30 patents
6. UL, cUL, ENEC & CQC Certificated, 100% RoHS & Reach compliance
Trade Shows and Customer Visiting:
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
A : Normally, MOQ=100pcs.
Q3. What’s the warranty time?
A: 1 - 2 years.
Q4. Could you offer us free samples?
A) Yes, free samples could be provided within 2-5 days.
Q5, What ‘s the lead time of mass production?
A : About 2-4 weeks.
Q6. What’s the capacity per month?
A : Over 8 million pieces per month for micro switch series.
Over 20 million pieces per month for keyboard switch series,
Q7. Where is your plant?
A: Located in Huizhou city, Guangdong province, China.
About 70 minutes by car from Shenzhen airport and about 2 hours from HK airport.
Q8 . Could you accept OEM or ODM ?
A : Yes, we have a strong R&D team. We have rich experience on OEM&ODM.
