Home > Products > Micro Switch > KW12F-8 5A Waterproof Solder Terminal Mini Micro Switch
KW12F-8 5A Waterproof Solder Terminal Mini Micro Switch
- Shenzhen Guangzhou HK
- Credit Card
You May Like
-
SPDT/SPST Mini Size Micro Switch Products With Long Lever
-
Arcade Parts Zing Ear Mini Micro Push Button Micro Switch
-
SPDT/SPST Small Micro Switches for Household Appliances Quality Choice
-
Zing Ear High Quality Hot Selling Small 2 ac Micro Switch
-
PCB Terminal Micro Switch With Roller Lever 0.1a Tuv Ul Vde Ce Cb Kc
-
Kw1 Small on off Micro Switch With 120V Push Button Switches
Product Details
| Place of Origin | Guangdong, China | Brand Name | ZING EAR | |
| Model Number | G10P1-090P05A | Max. Current | 3A | |
| Max. Voltage | 125VAC | Operating Temperature | -40℃~+85℃ | |
| Protection Level | IP00 |
Product Description
KW12F-8 5A Waterproof Solder Terminal Mini Micro Switch
Feature
-Small Compact Size
-Global safety approvals
-Long life and High Precision and Reliability
-Variety of levers optional
-Variety of Terminals
-Widely used in Appliance and Industrial Control etc.

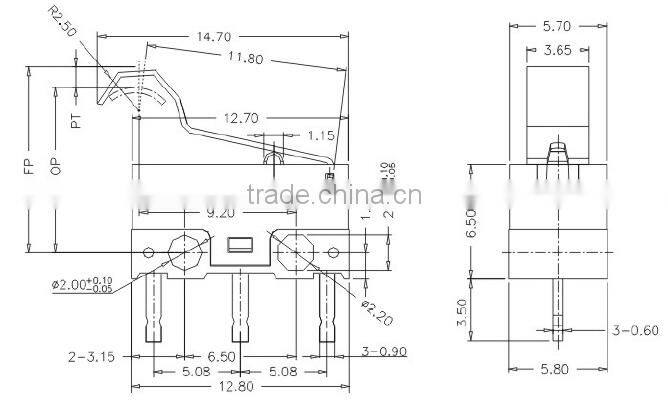

Drawing

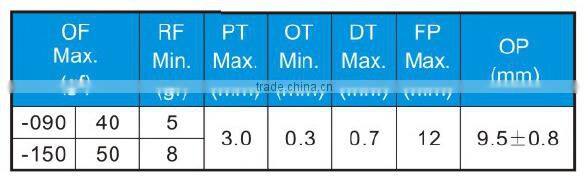

Parameters
| Rating | P1 | 0.1A 48VDC/125VAC (Gold plated optional) | ||||||||
| 03 | 1A/3A 125VAC | |||||||||
| Operation Frequency |
| 10~30 cycles/min | ||||||||
| Mechanical | 120 cycles/min | |||||||||
Contact Resistance(Initial Value) | 100mΩ Max(Depends on P/Ns) | |||||||||
| Insulation Resistance | 500VDC At 500VDC,100MΩ Min. | |||||||||
| Dielectric Strength | AC 600V RMS (50-60Hz) | |||||||||
| Storage Temperature | -40°C~+85°C | |||||||||
| Storage Humidity | 85%RH Max | |||||||||
| Service Life | Electrical | 6,000~50,000 cycles(Depends on P/Ns) | ||||||||
| Mechanical | 1,000,000 cycles | |||||||||
| Weight | About 0.5g(Straight PCB type without lever) | |||||||||
| Material | Gold plated/Silver Plated/Ag Contact | |||||||||
-Electrical Devices -Mouse
-Electric Knife -Calculator
-Telephone -Home Appliance
-Alarm -Tester Machine
Packing list
| No. | Greetech Product | Inner Box | Shipper Carton | MPQ | ||||||
| Inner box size(mm) | Q'ty/ | Total GW(kgs) | Carton size(mm) | Q'ty/ctn | Total GW(kgs) | MOQ | L/T | Total GW(kgs) | ||
| (pcs) | (pcs) | (pcs) | (Days) | |||||||
| 1 | G3 series(terminal type) | 310x215x135 | 3,360 | 3.9 | 440x325x300 | 13,440 | 15.3 | 1,000 | 15 | 1.2 |
| 2 | G5 series | 310x250x120 | 600 | 5.5 | 330x270x270 | 1,200 | 10.8 | 1,000 | 15 | 9 |
| 3 | G5W11 series | 310x215x135 | 200 | 4.8 | 440x325x300 | 800 | 19.2 | 100 | 10 | 2.5 |
| 4 | G6 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 5 | G9 series(terminal type) | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 6 | G91 series | 290x192x40 | 500 | 1.3 | 400x305x220 | 5,000 | 12.5 | 1,000 | 15 | 2.7 |
| 7 | G10 series | 290x192x40 | 600 | 1.3 | 400x305x220 | 6,000 | 12.5 | 1,000 | 15 | 2.7 |
| 8 | GT02 series | 210x155x55 | 300 | 1.2 | 440x325x285 | 6,000 | 12 | 6,000 | 15 | 12 |
| 9 | GPS100 series | / | / | / | 330*270*270 | 60 | 6.1 | 60 | 10 | 6.1 |
| 10 | Switch with wire leads | 310x215x135 | 100 | 1.8 | 440x325x300 | 800 | 14.5 | 800 | 20 | 14.5 |
Shipping way
Greetech Advantages:
Trade Records
Exhibitions & Customer visiting
Q1. Are you a trading company or manufacturer?
A: Yes. We are a manufacturer specializing in switches over 30 years.
Q2. What is your MOQ?
