Product Details
| Condition | New | Application | Granules | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | High Automation | Place of Origin | Jiangsu, China | |
| Brand Name | Techno | Model Number | TERQ | |
| Voltage | 220-480V | Power(W) | 37-100KW | |
| Dimension(L*W*H) | 4500*1500*2200 | Weight | 5000KGS | |
| Certification | CE/ISO | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Pellets Extruder Machine
Illustration of Pellets Extruder Machine
PVC Pelletizing Line is composed of twin screw extruder and corresponding auxiliary machinery.
The auxiliary machinery adopt die surface pelletizing,wind conveying and cooling system with high automation,precise cutting,efficient output and other characteristics.
The produced pellets are uniform and dense.
PVC compounders are widely used in Cable, Pipe Producing, Medical Hose, WPC Pelletiizng field,etc.
Main Parameter of Pellets Extruder Machine
Type | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | |||
Screw Diameter(mm) | 55/110 | 65/132 | 80/156 | 92/188 | |||
Screw Quantity(mm) | 2 | 2 | 2 | 2 | |||
Direction of Screw Rotation | Different direction, Outward direction | ||||||
Screw Speed(rpm) | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 | |||
Effective Screw Working Length(mm) | 1200 | 1440 | 1800 | 2500 | |||
Main Motor Power(kw) | 22 | 37 | 55 | 90 | |||
Barrel Heating Power(kw) | 18 | 24 | 36 | 86.8 | |||
Output(kg) | 80-140 | 250-300 | 320-450 | 500-600 | |||
Center Height(mm) |
| 1000 |
| 1200 | |||
Weight(kg) | 3500 | 4000 | 5000 | 10000 | |||
Dimension(mm) | 3620×1050×2157 | 4235×1520×2450 | 4750×1550×2460 | 6725×1550×2841 | |||

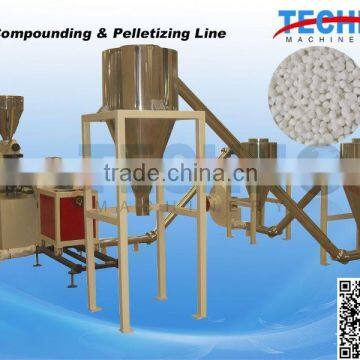

The Whole Line of PVC Pellets Extruder Machine
Auxiliary Machinery of PVC Pellets Extruder Machine
Standard Export Seaworthy Packing Pellets Extruder Machine
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1)plastic pipes production line 2)plastic profiles production line 3)plastic sheets production line 4)plastic pellets production line 5)plastic mixers 6)plastic pulverizer 7)tire recycling machinery ...........
