Automatic PVC Pipe Belling Machine
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Techno | |
| Model Number | SGK | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

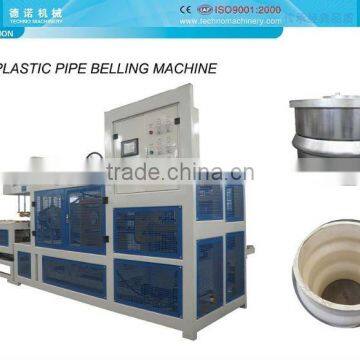

Automatic PVC Pipe Belling Machine
Illustration of Automatic PVC Pipe Belling Machine
1.Plastic pipe belling machine
2.Belling type:Z type and R type
3.PVC pipes
Fully automatic belling machine is suitable for the U-PVC belling. Shapingway adopts rising in the mould and rises and increasing the barometric pressureout of the mould to make it stereotypic.
Main Belling Machine Model
Model | Belling Scope | Total Power | G.W. | Overall dimensions (mm) | Belling-type |
SGK75S | Φ16mm-Φ75mm | 7kw | 1500kg | 7460×1950×1900 | U type |
SGK110 | Φ20mm-Φ110mm | 7kw | 1300kg | 7460×1550×1900 | U or R type |
SGK160 | Φ40mm-Φ160mm | 18kw | 2300kg | 7000×1530×1963 | R-type Smooth-type |
SGK250 | Φ50mm-Φ250mm | 18kw | 2500kg | 7300×1730×1950 | R-type Smooth-type |
SGK315 | Φ110mm-Φ315mm | 25kw | 2800kg | 7500×1930×2100 | R-type Smooth-type |
SGK400 | Φ160mm-Φ400mm | 25kw | 3000kg | 7900×2140×2125 | R-type Smooth-type |
SGK630 | Φ315mm-Φ630mm | 32kw | 3500kg | 8423×2970×2650 | R-type Smooth-type |
SGK1000 | Φ500mm-Φ1000mm | 50kw | 8000kg | 10000×4600×2570 | R-type Smooth-type |
Main Technical Parameters
Model | SGK | |
Belling Scope | Φ16mm-Φ1000mm | |
Belling-type | R-type, Square-type and Smooth type | |
Pipe Length | 3m-8m | |
Use Voltage | AC 380V; 50Hz (Or according to customer's request) | |
Central Height | According to customer's request | |
Molding mode | R-type | with collapsible core |
Smooth type | Pushing mould directly into pipe | |
Cooling mode | Air-cooled or Water cooled | |
Standard Export Seaworthy Packing Automatic PVC Pipe Belling Machine
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHN will provide spare parts without any charge in case of quality discrepancy caused by us, If the malfunctions are caused by your incorrect operation,TECHNO will provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co., Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1) plastic pipes production line 2) plastic profiles production line 3) plastic sheets production line 4) plastic pellets productin line 5) plastic mixers 6) plastic pulverizer 7) tire recycling machinery.......
Term of Payment
a. L/C
b. T/T ( 30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
