Plastic Pellets Production Process
- 10 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Granules | |
| Plastic Processed | PVC | Screw Design | Double-screw | |
| Automatic Grade | High Automation | Place of Origin | Jiangsu, China | |
| Brand Name | Techno | Model Number | TERQ | |
| Voltage | 220-480V | Power(W) | 37-100KW | |
| Dimension(L*W*H) | 4500*1500*2200 | Weight | 5000KGS | |
| Certification | CE/ISO/BV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Plastic Pellets Production Process

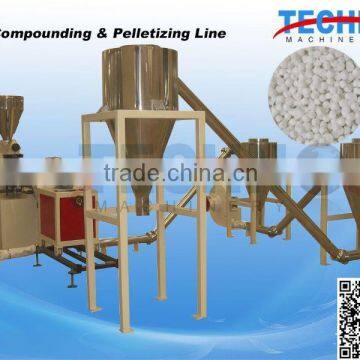

Illustration of Plastic Pellets Production Process
PVC Pelletizing Line is composed of twin screw extruder and corresponding auxiliary machinery.The auxiliary machinery adopt die surface pelletizing,wind conveying and cooling system with high automation,precise cutting,efficient output and other characteristics.
The produced pellets are uniform and dense.PVC compounders are widely used in Cable, Pipe Producing, Medical Hose, WPC Pelletiizng field,etc.
Main Technical Parameter
Type | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | |||
Screw Diameter(mm) | 55/110 | 65/132 | 80/156 | 92/188 | |||
Screw Quantity(mm) | 2 | 2 | 2 | 2 | |||
Direction of Screw Rotation | Different direction, Outward direction | ||||||
Screw Speed(rpm) | 1-30 | 1-34.7 | 1-36.9 | 1-32.9 | |||
Effective Screw Working Length(mm) | 1200 | 1440 | 1800 | 2500 | |||
Main Motor Power(kw) | 22 | 37 | 55 | 90 | |||
Barrel Heating Power(kw) | 18 | 24 | 36 | 86.8 | |||
Output(kg) | 80-140 | 250-300 | 320-450 | 500-600 | |||
Center Height(mm) |
| 1000 |
| 1200 | |||
Weight(kg) | 3500 | 4000 | 5000 | 10000 | |||
Dimension(mm) | 3620×1050×2157 | 4235×1520×2450 | 4750×1550×2460 | 6725×1550×2841 | |||
Plastic Pellet Production Process
Auxiliary Machinery of Plastic Pellet Production Process
Standard Export Seaworthy Packing Plastic Pellet Production Process
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1)plastic pipes production line 2)plastic profiles production line 3)plastic sheets production line 4)plastic pellets production line 5)plastic mixers 6)plastic pulverizer 7)cryogenic pulverizer 8)tire recycling machinery ...........
Term of Payment
a. L/C at sight
b. T/T (30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
