Home > Products > Broadcast LCD Monitor > professional broadcast lcd monitor 8.4 inch

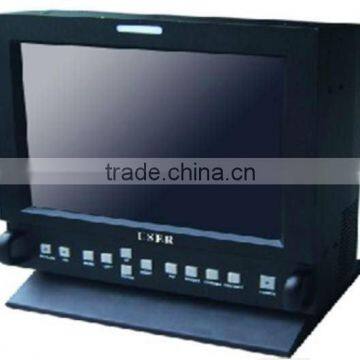

professional broadcast lcd monitor 8.4 inch
US$ 900 - 2,000
/ Piece
1 Piece(Min. Order)
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | User | |
| Model Number | US-BC0801 |
Product Description
Specifications
professional broadcast lcd monitor 8.4 inchDisplay area(mm)/mode:166(W)*125.5(H) 4:3
Maximum resolution:800x600
professional broadcast lcd monitor 8.4 inch
| Specification model | ||||||||||
| Model No. | US-BC0801 | |||||||||
| Panel size | 8.4″TFT-LCD | |||||||||
| Display area(mm)/mode | 166(W)×125.5(H) 4:3 | |||||||||
| Maximum resolution | 800x600 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.213(H)×0.213(V) | |||||||||
| Brightness (nits) | 400cd/m2 | |||||||||
| Contrast | 600:01:00 | |||||||||
| Visual angle | 140°/150° | |||||||||
| Response time | 25ms | |||||||||
| Input and output | ||||||||||
| Video input / loop out | 1 X BNC | |||||||||
| Y / C input / loop out | 1 X DIN | |||||||||
| Composite (YPbPr / YCbCr) input / loop out | 3 × BNC (can support 1080p format) | |||||||||
| SD / HD-SDI video input / loop out | 2 × BNC HD / SD auto-detection | |||||||||
| Audio input / loop out | 2 × RCA stereo | |||||||||
| Speaker | 3W × 2 | |||||||||
| Remote Control | RS-232 | |||||||||
| Dual screen (PIP / PBP) | yes | |||||||||
| Dual Screen exchange | yes | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM (automatic recognition) | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( multi language supported) | |||||||||
| Power | ||||||||||
| Power supply | AC:100-240V 50/60HZ, DC12V | |||||||||
| Standby power consumption | <30W | |||||||||
| Power-saving mode | without signal for some time, turn off a number of peripherals | |||||||||
| Temperature | ||||||||||
| Color Temperature | 9300K, 6500K, 5600K, by user | |||||||||
| Mark to select | center marker, the proportion of marked, safe area, filling | |||||||||
| Working temperature | 0°C~50°C | |||||||||
| Appearance | ||||||||||
| Chroma vectors | yes | |||||||||
| Luminance distribution histogram | yes | |||||||||
| Black and white mode | yes | |||||||||
| All blue-mode | yes | |||||||||
| Full scan mode | scanning, over scan | |||||||||
| Display scale | 16:9,4:4, full screen, press the input image ratio of 1:1 (peer to peer) | |||||||||
| TALLY LED lights | red and green color channels highlighted warning lamp | |||||||||
| 19-inch rack mount | optional | |||||||||
| VESA install | NO | |||||||||
| End blocks | yes | |||||||||
| Battery pinch | yes | |||||||||
| Accessory | Power, SDI cable, screws, manual,hood | |||||||||
