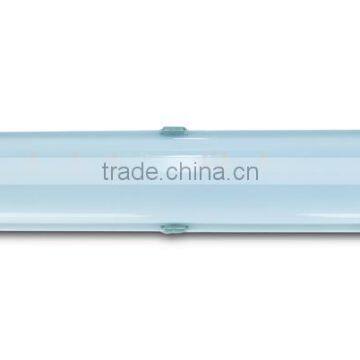

15W 600mm Tri-Proof LED Tube _O

FOB Price

US$ 1 - 200 / Piece

500 Pieces(Min. Order)

Port Dalian
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type

LED Vapor-tight Fixture

Certification

CE ROHS EMC LVD

Product Description

Applications

Factory, Super Market, Restaurant, School, Parking Pot, Tunnel, Bus Station, Subway Corridor, Garage, Warehouse

Features

- Area light source: Anti-glare, softer, more uniform light than conventional products

- Integral heat dissipation structure: #3003 aluminum alloy reflector, anodized surface treatment; thermal conductivity>190W/M.K

- Compact, less weight, IP65;

- No flash, no glare, noiseless, providing a comfortable lighting environment for you, better than conventional tri-proof light

- Lifespan >35000 hours, low maintenance cost, low carbon emission, energy saving

- Injected shaping with stiffener rib, opaque anti-UV PC with natural Silicone rubber seal, easy to install and maintain

- Enclosed buckles on both sides, by which the cover is still connected with the lamp even if the cover happens to open, easy to open the buckles at the bottom by hand

Model List

Tri-Proof Tube
Model	Watts(W)	LED	Input Voltage(V)	Luminous Flux(lm)	Color Temperature(K)	CRI	PF(AC 220V)	Dimension(mm)	Weight (kg)	Material	Lifespan(h)
CD-TP0601-7C/N/WD1	7	SMD 2835	AC 176-240	>560	2700-6500	>80	>0.8	6538380	0.79	PC	>35000
CD-TP0602-15C/N/WD1	15	SMD 2835	AC 176-240	>1200	2700-6500	>80	>0.8	65312880	1.00	PC	>35000
CD-TP1201-15C/N/WD1	15	SMD 2835	AC 176-240	>1200	2700-6500	>80	>0.8	12638380	1.38	PC	>35000
CD-TP1202-30C/N/WD1	30	SMD 2835	AC 176-240	>2400	2700-6500	>80	>0.8	126312880	2.00	PC	>35000
Remark: All the above tested data deviation:±10% .

Dimension

L.I.D. Diagram

A.A.I. Figure

Parameters

Basic Info	Items	Tri-Proof Tube	Tri-Proof Tube	Tri-Proof Tube	Tri-Proof Tube
Basic Info	Model	CD-TP0601-7C/N/WD1	CD-TP0602-15C/N/WD1	CD-TP1201-15C/N/WD1	CD-TP1202-30C/N/WD1
Aspect	Material	PC	PC	PC	PC
	Body Color	White	White	White	White
	Dimension	L653W83H80	L653W83H80	L1263W83H80	L1263W83H80
Electrical	Watts(W)	7	15	15	30
	Input Voltage(V)	AC 176~240	AC 176~240	AC 176~240	AC 176~240
	Frequency	50~60Hz	50~60Hz	50~60Hz	50~60Hz
	Power Mode	Internal	Internal	Internal	Internal
	Power Factor	>0.8	>0.8	>0.8	>0.8
	Power Efficiency	>85%	>85%	>85%	>85%
Optical	LED Brand	Jingke/Hongli	Jingke/Hongli	Jingke/Hongli	Jingke/Hongli
	LED Type	2835	2835	2835	2835
	LED Qty.(pcs)	36	72	72	144
	Luminous Flux(lm)	560	1200	1200	2400
	CCT(K)	2700~6500	2700~6500	2700~6500	2700~6500
	Light Color	Cold,Natural,Warm	Cold,Natural,Warm	Cold,Natural,Warm	Cold,Natural,Warm
	CRI(Ra)	>80	>80	>80	>80
	Beam Angle(°)	125°	125°	125°	125°
	Dimmable	Unavailable	Unavailable	Unavailable	Unavailable
Application	Mounting Size(mm)	/	/	/	/
	Socket	/	/	/	/
	Install Mode	Ceiling Mounted	Ceiling Mounted	Ceiling Mounted	Ceiling Mounted
	Operation Temperature(℃)	-30℃~50℃	-30℃~50℃	-30℃~50℃	-30℃~50℃
	Operation Hummidity(RH)	/	/	/	/
	Storage Temperatures(℃)	-40°~80°	-40°~80°	-40°~80°	-40°~80°
	Lifetime(hrs)	>35000	>35000	>35000	>35000
Protection	Ingress Proctection	IP65	IP65	IP65	IP65
Protection	Waterproof	Availbale	Availbale	Availbale	Availbale

Power Contrasts

Power Consumption Contrasts
Item	Cedar LED Tri-proof Light				Conventional Tri-proof Light (Fluorescent)
Watts(W)	7	15	15	30	14	28	28	56
Lifespan(h)	35000	35000	35000	35000	6000-8000	6000-8000	6000-8000	6000-8000
Power Consumption/Year(KWH)	61.32	131.40	131.40	262.80	122.64	245.28	245.28	490.56
Remark: The above data was calculated by lamps lit 7*24.
