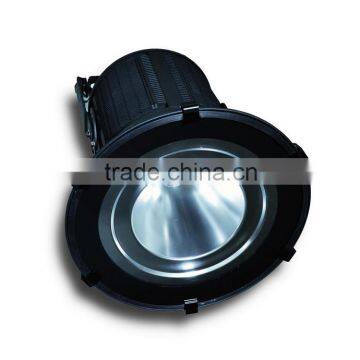

200W Flood Light _O

FOB Price

US$ 1 - 300 / Piece

100 Pieces(Min. Order)

Port Dalian
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	SMD2828	Input Voltage(V)	AC176~240
Lamp Power(W)	200	Lamp Luminous Flux(lm)	19000
Lamp Luminous Efficiency(lm/w)	95	Color Temperature(CCT)	Other, 2700~6500
Working Temperature(℃)	-10, 40	Working Lifetime(Hour)	35000
Lamp Body Material	Other, Aluminum+Toughened Glass	IP Rating	IP67
Certification	CCC, CE, CQC, EMC, FCC, GOST	Place of Origin	Jilin, China
Brand Name	CEDAR	Model Number	CD-FL355-150/200/300/500

Product Description

Applications

Industry Plant, Stadium, Dock, Golf Course, Square

Features

- Average temperature board + heat pipe tech:Heat sink directly connected with heat source, achieve uniform heat conduction

- Hi-pure aluminum used in the whole lamp, weather resistance processed surface, corrosion proof, rust proof, available with inclement outdoor environments

- Vibration tested, guarantee safe application under various conditions

- Ingress Protection: IP67

- Adjustable beam angle, the whole lamp: 228°

- Build-in air-breather: Adjust temperature difference inner and outer, preventing the glass from mist condensing

- Compact design, easy installation, enhance safety in use

- Available with various angles reflector cap, meet various light distribution requirements

Model List

Flood Light
Model	Watts(W)	LED	Input Voltage(V)	Luminous Flux(lm)	Color Temperature(K)	CRI	PF(AC 220V)	Dimension(mm)	Weight (kg)	Material	Lifespan(h)
CD-FL355-150	150	Citizen COB	AC 176-240	>14250	2700-6500	>70	>0.95	Φ360*485	6.8	Aluminum Alloy+Toughened Glass	>35000
CD-FL355-200	200	Citizen COB	AC 176-240	>19000	2700-6500	>70	>0.95	Φ360*450	7.3	Aluminum Alloy+Toughened Glass	>35000
CD-FL355-300	300	Citizen COB	AC 176-240	>28500	2700-6500	>70	>0.95	Φ360*485	8.0	Aluminum Alloy+Toughened Glass	>35000
CD-FL355-500	500	Citizen COB	AC 176-240	>47500	2700-6500	>70	>0.95	Φ382*495	15.0	Aluminum Alloy+Toughened Glass	>35000
Remark: All the above tested data deviation:±10%

Dimension

Parameters

Basic Info	Items	Flood Light	Flood Light	Flood Light	Flood Light
Basic Info	Model	CD-FL355-150	CD-FL355-200	CD-FL355-300	CD-FL355-500
Aspect	Material	Aluminum+Toughened Glass	Aluminum+Toughened Glass	Aluminum+Toughened Glass	Aluminum+Toughened Glass
	Body Color	Black	Black	Black	Black
	Dimension	D360*H485	D360*H450	D360*H485	D382*H495
Electrical	Watts(W)	150	200	300	500
	Input Voltage(V)	AC 176~240	AC 176~240	AC 176~240	AC 176~240
	Frequency	50~60Hz	50~60Hz	50~60Hz	50~60Hz
	Power Mode	Internal	Internal	Internal	Internal
	Power Factor	>0.95	>0.95	>0.95	>0.95
	Power Efficiency	>88%	>88%	>88%	>88%
Optical	LED Brand	Citizen	Citizen	Citizen	Citizen
	LED Type	2828	2828	3838	3838
	LED Qty.(pcs)	1	1	1	1
	Luminous Flux(lm)	14250	19000	28500	47500
	CCT(K)	2700~6500	2700~6500	2700~6500	2700~6500
	Light Color	Cold,Natural,Warm	Cold,Natural,Warm	Cold,Natural,Warm	Cold,Natural,Warm
	CRI(Ra)	>70	>70	>70	>70
	Beam Angle(°)	12.5°	12.5°	10°	10°
	Dimmable	Unavailable	Unavailable	Unavailable	Unavailable
Application	Mounting Size(mm)	/	/	/	/
	Socket	/	/	/	/
	Install Mode	Floor standing, hangning on wall, with bracket	Floor standing, hangning on wall, with bracket	Floor standing, hangning on wall, with bracket	Floor standing, hangning on wall, with bracket
	Operation Temperature(℃)	-30℃~50℃	-30℃~50℃	-30℃~50℃	-30℃~50℃
	Operation Hummidity(RH)	10%RH-90%RH	10%RH-90%RH	10%RH-90%RH	10%RH-90%RH
	Storage Temperatures(℃)	-40°~70°	-40°~70°	-40°~70°	-40°~70°
	Lifetime(hrs)	>35000	>35000	>35000	>35000
Protection	Ingress Proctection	IP67	IP67	IP67	IP67
Protection	Waterproof	Availbale	Availbale	Availbale	Availbale
