Home > Products > LED LIGHTING > 13W 5" LED Suspended Down Light _O

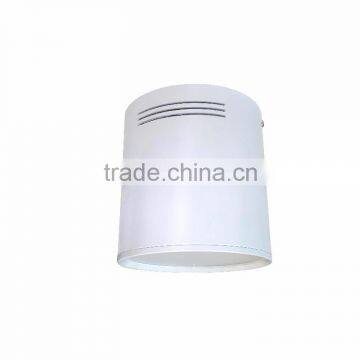

13W 5" LED Suspended Down Light _O
US$ 1 - 20
/ Piece
1000 Pieces(Min. Order)
- Dalian
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Type | Downlight | Certification | CE ROHS |
Product Description
Applications
Commercial Lighting, Home, Office, Hotel, Public Area
Features
- Standard hanging structure, easy installation and maintenance
- Simple and elegant light source design: Perfect match with aluminum enclosure
- Uniform light, no glare, no noise
- Lifespan: >35000h, low maintenance cost, low carbon emission and save energy
- Anti-fog design: Keeping insects out and accumulating dust, easy to clean, more reliable
Model List
5” Suspended Down Light | |||||||||||
Model | Watts(W) | LED | Input Voltage(V) | Luminous Flux(lm) | Color Temperature(K) | CRI | PF(AC 220V) | Dimension(mm) | Weight (kg) | Material | Lifespan(h) |
CD-DL158-13C/N/WG1 | 13 | SMD 5730 | AC 176-240 | >950 | 2700-6500 | >80 | >0.85 | 171*171*120 | 0.91 | Spray Paint with Iron | >35000 |
Remark: All the above tested data deviation:±10% | |||||||||||
Dimension
L.I.D. Diagram
A.A.I. Figure
Power Contrasts
Power Consumption Contrasts | ||||
Item | Cedar Radar Sensor T8 LED Tube | T8 Fluorescent Tube | ||
Watts(W) | 18 | 18 | 36 | 36 |
Lifespan(h) | 35000 | 35000 | 7000 | 7000 |
Power Consumption/Year(KWH) | 157.68 | 157.68 | 359.16 | 359.16 |
Remark: The above data was calculated by lamps lit 7*24. | ||||
Parameters
| Basic Info | Items | 5" Suspended Down Light |
| Model | CD-DL120-13C/N/WD0X1 | |
| Aspect | Material | Iron |
| Body Color | White | |
| Dimension | D120*H120 | |
| Electrical | Watts(W) | 13 |
| Input Voltage(V) | AC 176~240 | |
| Frequency | 50~60Hz | |
| Power Mode | External | |
| Power Factor | >0.9 | |
| Power Efficiency | >87% | |
| Optical | LED Brand | Jingke/Hongli |
| LED Type | SMD 5730 | |
| LED Qty.(pcs) | 24 | |
| Luminous Flux(lm) | 950 | |
| CCT(K) | 2700~6500 | |
| Light Color | Cold,Natural,Warm | |
| CRI(Ra) | >80 | |
| Beam Angle(°) | 100° | |
| Dimmable | Unavailable | |
| Application | Mounting Size(mm) | / |
| Socket | / | |
| Install Mode | Ceiling Mounted | |
| Operation Temperature(℃) | -10℃~40℃ | |
| Operation Hummidity(RH) | 10%RH-90%RH | |
| Storage Temperatures(℃) | -40°~80° | |
| Lifetime(hrs) | >35000 | |
| Protection | Ingress Proctection | IP20 |
| Waterproof | / | |
| Energy Saving | 50% | |
| Constrasted to | 26W Fluorescent Lamp | |
| Packing | Unit Net Weight(Kg) | 0.85 |
| Unit Gross Weight(Kg) | 0.908 | |
| Unit Packing(mm) | 125*125*145 | |
| Qty./Carton(pcs) | 20 | |
| Carton Size(mm) | 650*270*310 | |
| 20FT Qty() | 432 |
