Manufacturers Direct Vehicle Headlight Sensor Pulled Out the Key Delay off the Headlight Photosensitive Switch

The car automatically open the headlights, headlight headlamp delay automatic night sensor, tunnel lighting,At night or in dark placesUnplug the key delay 10S turn off the headlight, the day did not delay function.

Brief introduction to functions:

When the car runs toThe tunnel or dark place(2 seconds)More afterRelay switch on and turn on the car headlightCar travel toThe tunnel or dark placeLess than 2 seconds relay does not move that does not turn on the headlightsThis prevents the pedestrian bridge, frequent open headlamps,As long asTunnels orDark placeTwo relays(headlights and headlight)At the same time, it has been switched on.TunnelAfter the light of the place, the time delay start(delay time can set their own 1-180S adjustable),Time delay,Two relays(headlights and headlight)meanwhileDisconnect, two car headlights are automatically disconnected,At night or in dark placesPull out the key delay 10S off headlight,There is no time delay in the day.

Product use:
Automatic detection of light, brightness detection. Through the potentiometer can adjust the brightness detection valve point, and with built-in relay or buzzer alarm and delay function, can do all kinds of light detection alarm, light controlled time delay switch, and the brightness detection switch, can control all kinds of street lamps, night automatically opened, daytime automatically etinguished and automatic car headlights, stage lights, LED lights, traffic detection switch, products are delay adjustable light sensitivity adjustable function, light sensor without blinking.
Module features:
1 by using the MCU control sensor trigger delay controller;
2 to provide a variety of power input connection, to meet a variety of different needs;
3 with anti - power supply connected to anti - protection diodes, effective protection of products;
4 with a high current voltage regulator, to provide adequate power supply;
5 has the sensor sensitivity adjustment potentiometer and the time delay adjustment potentiometer, effectively solves the problem of flicker;
6 direct control of large current load;
7 can be used to detect the use of light alarm.
Technical parameter:
Power input: 12VDC current: greater than 500mA
Maimum relay load: 10A 220V or 10A 30V (less than that required)
Delay time: 1-180 seconds (can also be customized other time range, please contact the seller)
PCB size: 60mm 76mm
Modules for use:
1 this module uses the photosensitive resistance to carry on the detection of the light intensity, generally used to detect the brightness of the surrounding environment of the light;
. when the detected light intensity is lower than the set threshold, relay, when the environmental light is higher than the threshold, the relay is switched off;
The installation position of the 3. Photosensitive resistance is very important, if the lights or stage lighting control, can not be put in can feel the need to control the lights, or photosensitive resistance will feel light will enable relay to disconnect, will be circular light the lamp.
4. After the connection, need to adjust light induction in the practical application environment, such as automobile headlamps, in tunnel regulation dynamic automatic light, delay is generally 5-10 seconds, the street lamp control delay generally transferred directly to the longest time of 180 seconds.
Delivery list:

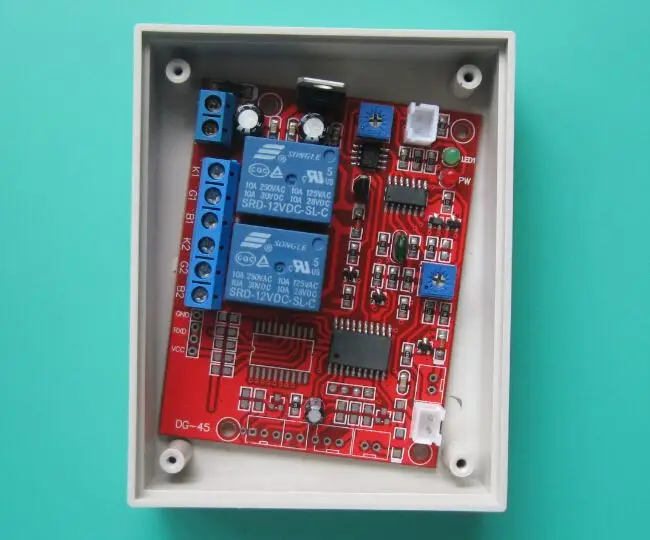

Shipped default such as the following parts,Auto automatic headlight induction module 1, with 50cm long lead photosensitive resistance 1,With 20cm long connect ACC lead 1.

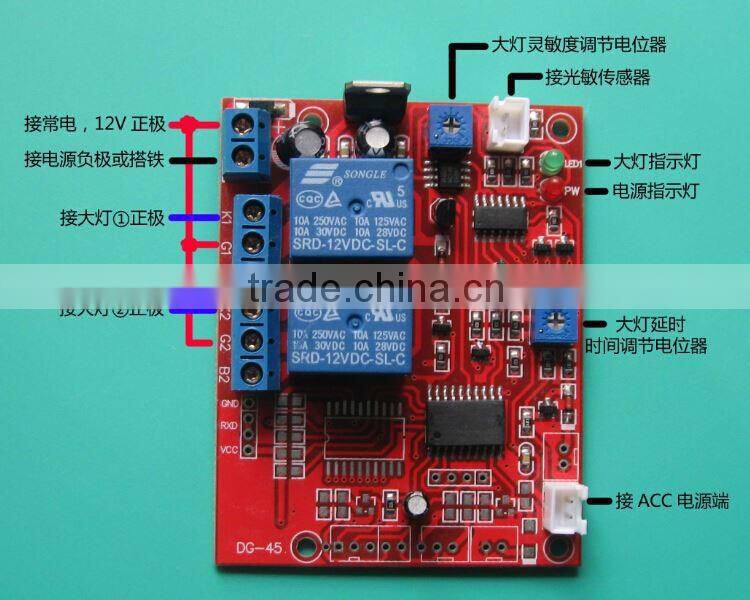

Automobile automatic headlight sensor wiring diagram:

Headlight sensitivitytransferPitch potentiometer:anti-clockwiseincreaseSensitivity,Clockwisereducesensitivity

The headlampsTime delay adjustment potentiometer:ClockwiseReduce time,anti-clockwiseIncrease time

Need to bo can open the following links to purchase, attention is not complete, but can be installed under the board oh.

/item.htm?spm=2013.1.0.31.8E2GJ&id=20220372373

Statement:Modification ofRisk, the need to be cautious, the need for a certain modification of the electronic circuit. This shop is not responsible for any vehicle fault and damage caused by the modification.
